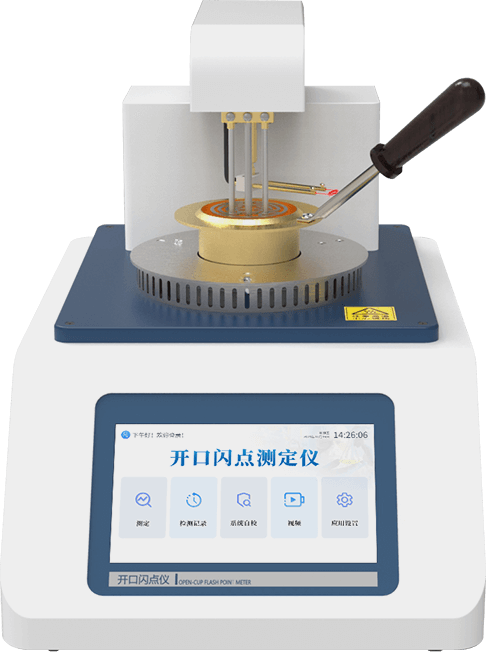

Open Cup Flash Point Tester

Open Cup Flash Point Tester

  • Product Number:LD-KS
  • Product Difference:Flame ionization detection, primarily used for petroleum products and other flammable liquids

Product Introduction

Fully Automatic Open Cup Flash Point and Ignition Point Tester This instrument primarily determines the minimum temperature at which petroleum products and other flammable liquids, when mixed with air under specified conditions, flash ignite and burn upon encountering an ignition source. The open cup flash point tester is widely used in railways, aviation, power generation, petroleum industries, and research institutions to ensure the safe storage, transportation, and use of materials.

The open cup flash point tester heats according to the temperature curve specified in GB/T 3536—2008. It automatically ignites when the temperature approaches the preset flash point value. Upon detecting the flash point and fire point, the instrument automatically locks the results, displays and prints them, while simultaneously activating the fan to automatically cool the heater.

Product Features

  • High-definition Android touchscreen with real-time temperature curve display and Chinese/English language switching.

  • Complies with applicable standards and offers broad application scope.

  • Automatic electric ignition: ignites automatically when temperature approaches preset flash point value; locks results upon flash point occurrence.

  • System self-check function monitors arm, sweep rod, ignition wire, printer, fan, etc.

  • Built-in thermal printer delivers quieter, faster, and clearer printing.

Product parameters

Display7-inch HD Android touchscreen, 1024*600 pixels
Measurement RangeAmbient temperature ~ 400℃
Temperature SensorClass A PT100 (three-wire system, temperature compensated)
Temperature Detection Accuracy0.1℃
Barometer Accuracy≤0.5kPa
Repeatability≤4℃
Heating Rate14℃-17℃/min before expected flash point of 56℃; 5°C-6°C/min from 23°C before expected flash point
Ignition MethodElectrical Ignition
Flashback Detection MethodFlame Ionization Detection
Ignition Point FunctionAutomatic Ignition Point Value Locking
Cooling MethodForced Air Cooling
Temperature ControlIntelligent Temperature Control
Display ContentReal-time Temperature Curve, Chinese/English language switching
Data StorageUnlimited, based on EMMC capacity
Additional FeaturesData export, cloud platform upload
PrinterThermal, supports Chinese characters, graphics, QR codes, unlimited lines
Self-Diagnostic FunctionDetects arm, scanning bar, ignition wire, printer, fan, etc.
Power SupplyAC220V±10% 50Hz±5%
Power Consumption≤600W
Ambient Temperature10°C~35°C
Ambient Humidity＜85%
Dimensions & Weight43cm*28cm*35cm (L×W×H), 11.3kg
