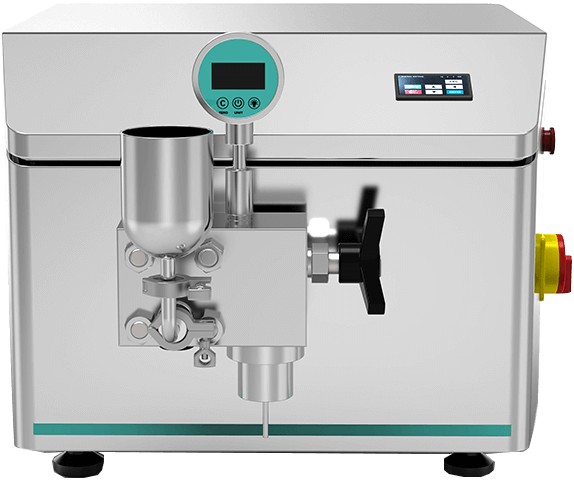

Multifunctional High-Pressure Homogenizer
- Product Number:LD-HP10
- Product Difference:Economy model, digital pressure gauge, adjustable flow rate 12-15L
+86 19353291814
Online ConsultationProduct Introduction
The multi-functional high-pressure homogenizer utilizes a high-pressure reciprocating pump as its power transmission and material delivery mechanism, conveying materials to the working valve assembly. As materials pass through the working valve, intense shearing, impact, and cavitation forces are generated under high pressure, thereby achieving ultrafine dispersion of liquid substances or solid particles suspended in liquid carriers.
Product Features
Capable of measuring various materials with broad application fields, including but not limited to the pharmaceutical industry, cosmetics, fine chemicals, and food industry.
Features a solid ceramic plunger with exceptional hardness and a smooth surface, offering outstanding wear resistance and self-lubricating properties.
Dual cleaning modes enable the equipment to perform SIP and CIP cleaning operations.
Zero sample residue; flow control allows real-time adjustment of flow rate according to experimental requirements.
Product parameters
| Pressure | Maximum Design Pressure (MPa/bar/psi): 180/1800/26100; Actual Operating Pressure: 0–21750 psi (150 MPa), adjustable; Maximum pressure must be stably maintained at 21750 Psi (150 MPa) |
| Flow Rate | Design flow rate: 12 L-15 L/H, Minimum Processing Volume: ≤ 45 mL |
| Check Valve Structure | Conventional Exhaust |
| Sample Residue | Zero Sample Residue, flow control allows real-time adjustment of flow rate according to experimental requirements |
| Ceramic Plunger | Features a solid ceramic plunger with high hardness and a smooth surface, offering excellent wear resistance and self-lubrication properties |
| Material Temperature Control | Requires a homogenizing valve equipped with a temperature-controlled jacket and temperature-control medium inlet/outlet fittings and connecting lines to enable online temperature regulation. At low temperatures, discharge temperature can be maintained around 4°C to preserve material biological activity. |
| Pressure Display | Digital pressure gauge provides high-precision readings with enhanced durability. |
| Homogenization Stages | Single-stage temperature-controlled homogenization valve. |
| Feed Material Viscosity | ≤2000 cp |
| Maximum Feed Particle Size | ≤100 μm |
| Material Temperature | ≤ 90℃ |
| Feed Mode | Tri-Clamp quick-connect with self-priming design, eliminates need for additional pump suction, prevents contamination and hopper pairing |
| Power source requirements | ABB motor pump drive, power supply: 220 V/50 Hz |
| Homogenizer valve requirements | Materials: zirconia, tungsten carbide, diamond, Stellite, etc.; Independent homogenization module for easy maintenance, disassembly, and sterilization |
| Homogenization Effect Requirements | Nano-homogenization: Achieves ≤100 nm particle size; Cell disruption: Capable of disrupting various cell types with ≥95% disruption rate |
| Cleaning Modes | Equipment supports SIP and CIP cleaning operations |
| Piston Quantity | 1 |
