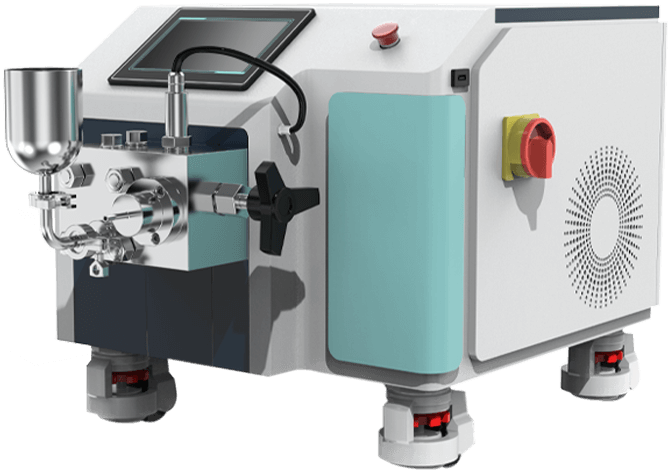

Compact High-Pressure Homogenizer
- Product Number:LD-HP30
- Product Difference:7-inch touchscreen model, flow rate adjustable from 12 to 15 liters per minute
+86 19353291814
Online ConsultationProduct Introduction
The compact high-pressure homogenizer utilizes a high-pressure reciprocating pump as its power transmission and material delivery mechanism, conveying materials to the working valve assembly. As materials pass through the working valve, intense shearing, impact, and cavitation forces are generated under high pressure, resulting in the ultrafine dispersion of liquid substances or solid particles suspended in liquid carriers.
Product Features
Capable of measuring various materials with broad application fields, including but not limited to the pharmaceutical industry, cosmetics, fine chemicals, and food industry.
Features a solid ceramic plunger with exceptional hardness and a smooth surface, offering outstanding wear resistance and self-lubricating properties.
Dual cleaning modes enable the equipment to perform SIP and CIP cleaning operations.
Zero sample residue; flow control allows real-time adjustment of flow rate according to experimental requirements.
Product parameters
| Pressure | Maximum Design Pressure (MPa/bar/psi): 200/2000/29000; Actual Operating Pressure: 0–26100 psi (180 MPa), adjustable; Maximum pressure must be stably maintained at 26100 Psi (180 MPa) |
| Flow Rate | Design flow rate: 12 L-15 L/H, Minimum Processing Volume: ≤ 15 mL |
| Check Valve Structure | Optional in-line venting, no pressure reduction required |
| Sample Residue | Zero sample residue; flow control allows real-time adjustment based on experimental requirements |
| Ceramic Plunger | Features a solid ceramic plunger, offering high hardness, smooth surface, excellent wear resistance, and self-lubrication |
| Material Temperature Control | Requires homogenization valve with temperature control jacket, inlet/outlet ports for temperature control medium, and connecting piping to enable online temperature regulation. Discharge temperature controlled between -5°C to 100°C (depending on material requirements) ; enables constant temperature control of high-pressure homogenization components, achieving simultaneous temperature regulation for both equipment and material. Ensures material biological activity |
| Pressure Display | Features a ≥7-inch touchscreen and sanitary digital pressure sensor displaying pressure curves, offering higher precision, greater sensitivity, and enhanced durability |
| Homogenization Stages | Temperature-controlled homogenization valve available in single-stage or dual-stage configurations |
| Feed Material Viscosity | ≤2000 cP |
| Maximum Feed Particle Size | ≤100 μm |
| Material Temperature | ≤ 90°C |
| Feed Mode | Tri-Clamp quick-connect with self-priming design, eliminates need for additional suction pumps, preventing contamination and hopper compatibility issues |
| High-pressure seal | Constructed with imported materials, featuring high fatigue strength and wear resistance. Ensures long-term high-pressure sealing performance. |
| Power Source Requirements | ABB motor-pump drive, power supply: 220 V/50 Hz. |
| Homogenizer Valve Requirements | Materials include zirconia, tungsten carbide, diamond, Stellite, etc.; Independent homogenizing module for easy maintenance, disassembly, and sterilization. Cell disruption: Capable of disrupting various cell types with ≥95% disruption rate |
| Cleaning Modes | Equipment supports SIP and CIP cleaning operations |
| Piston Quantity | 1 |
