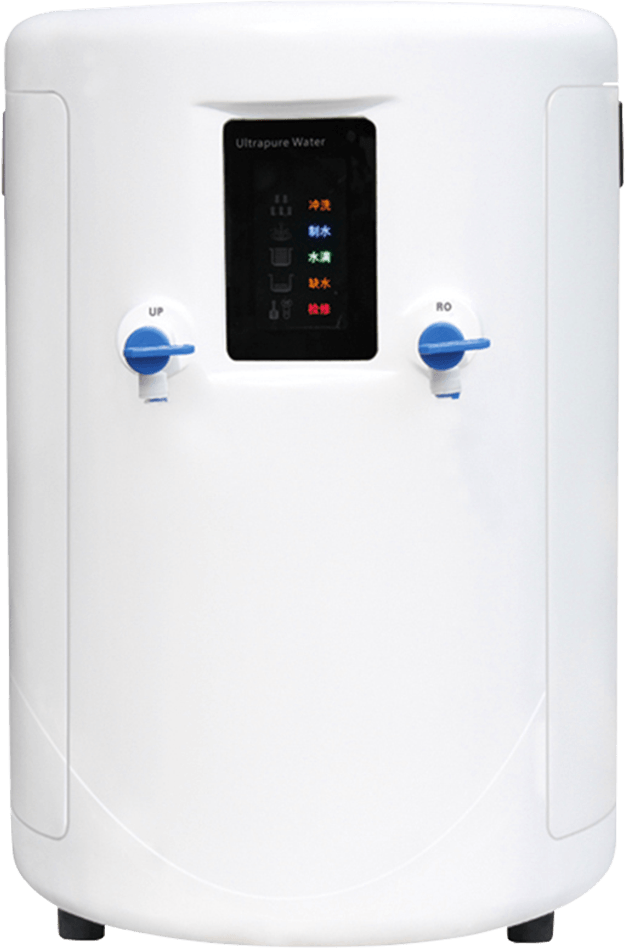

Ultra purified water machine

Ultra purified water machine

  • Product Number:LD-CD40L
  • Product Difference:Water output: 40 L/h; floor-standing model with large touchscreen; dual resistance and conductivity displays; equipped with a sterile water tank, UV sterilization lamp, and terminal filter

Product Introduction

Applications: PCR applications and analysis; meteorological analysis; precision instrument analysis; amino acid analysis; preparation and dilution of analytical reagents and chemicals; liquid chromatography; medical biochemical analysis instruments; gas chromatography; atomic absorption, atomic fluorescence, and atomic emission spectroscopy; ion chromatography; and plasma emission spectroscopy.

Product Features

  • 7-inch extra-large color touchscreen with an animated menu control system.

  • Displays water quality and temperature for three water streams—inlet water, RO water, and UP water—enabling real-time monitoring.

  • Automatic alerts for expired consumables to prevent a decline in water quality.

  • System password protection prevents unauthorized data changes.

  • Regular automatic circulation ensures stable water quality.

  • Circulation system can be freely started or stopped.

  • Compatible with two pure water storage methods: pressurized water barrels and level-sensing water tanks; water level and storage volume are displayed directly.

  • Fixed-volume water dispensing function (1–999,999 ml).

  • Conductivity-based water dispensing function (0.1–18.25 MΩ·cm).

  • Comprehensive information query and data management functions provide full oversight of system operation status, water quality, consumable usage, and historical alarms.

  • Standard USB port allows connection to a printer for printing historical water quality and water usage records.

  • Standard one-touch disinfection module for rapid disinfection of RO membranes, recirculation lines, and water tanks, ensuring extremely low bacterial contamination levels.

  • System time settings (year/month/day/hour/minute), timed standby (0–60 min), and timed shutdown (0–24 h) functions.

  • The service life of the pre-treatment unit, RO membrane, UV lamp, and ultrapure water cartridge can be freely set, and the system displays the usage and remaining time of consumables.

  • Built-in automatic timed flushing function to prevent scale buildup on the RO membrane, extending its service life.

  • All-plastic housing, rust-free.

Product parameters

ModelLD-CD10LD-CD20LD-CD40LLD-CD60LLD-CD80LLD-CD100L
Water output10L/H20L/H40L/H60L/H80L/H100L/H
Water Supply RequirementsMunicipal tap water; TDS < 200 ppm; Water pressure > 1–2 MPa; Water temperature: 5–45°C
Water Flow Rate1.5–1.8 L/min
Water QualityConductivity ≤ 10 μS/cm @ 25°C
Resistivity18.2 MΩ·cm @ 25°C (0.055 μS/cm @ 25°C). Water quality meets U.S. CAP, ASTM, and NCCLS standards, as well as China’s National Grade 1 Ultrapure Water Standard
Total Organic Carbon<3 ppb
Soluble silicon<0.01mg/L [expressed as (SiO₂)]
Absorbance≤0.001 (254 nm, 1 cm path length)
Heat content<0.005Eu/ml
Microorganisms/Bacteria<1 CFU/ml
Fine particles/particulate matter<1/ml (greater than 0.1 μm)
Heavy metal ions<0.1ppb
Cation contentIron <0.005, Copper <0.005, Aluminum <0.005, Nickel <0.005, Zinc <0.02, Chromium <0.005, Sodium <0.01, Potassium <0.02 (in ppb)
Anion contentChloride <0.01, Nitrite <0.02, Nitrate <0.02, Sulfate <0.01 (units: ppb)
Operation Mode DisplayPower, Low Water, Full Water, Purified Water Dispensing, Internal Circulation, Ultrapure Water Dispensing, Ion Exchange Membrane Alarm, Ultrapure Column Alarm, Flushing, etc.
Safety FeaturesNo water or low water pressure, full-tank shutdown, ultrapure water exceedance alarm, system password, automatic restart upon alarm
System MonitoringUltrapure water quality, RO water quality, water temperature, consumable usage, dispensing time, etc.
Power Specifications220V/50Hz, Power: 35W
