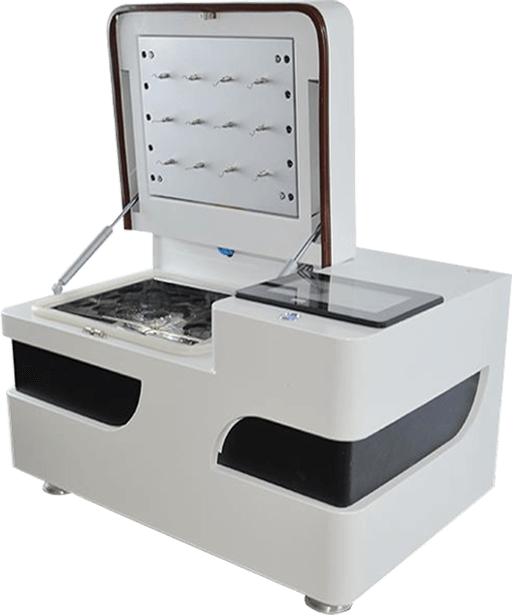

Secondary Thermal Desorption Instrument
- Product Number:LD-HA2
- Product Difference:Sampling, adsorption, desorption, injection, and backflush cleaning—fully automated operation
+86 19353291814
Online ConsultationProduct Introduction
We have years of experience in developing and manufacturing secondary thermal desorption instruments. Our instruments are easy to operate and deliver accurate detection data. As the manufacturer, we offer competitive pricing. Please feel free to call us for inquiries!
Product Features
10-inch color touchscreen for online monitoring.
Simple operation with one-click sample analysis.
Semiconductor cooling eliminates liquid hydrogen requirements (cold trap temperature down to -35°C).
Real-time display of cycle times for all operational states.
Adjust injection volume via injection time for samples of varying concentrations.
Real-time display of set and actual temperatures for all channels.
Programmed temperature ramping: 8 steps, programmable.
Synchronized injection and data acquisition significantly reduce timing errors.
Fully automated operation for sampling, adsorption, desorption, injection, and backflush cleaning.
All tubing treated with inert gas technology.
Multiple methods stored for quick recall, enabling rapid startup and analysis.
Equipped with system leak detection capability.
Product parameters
| Primary Desorption Temperature Adjustment Range | Room temperature to 380°C, accuracy ±0.5°C, increment 1°C freely adjustable |
| Secondary Desorption Temperature Adjustment Range | Room temperature to 380°C, accuracy ±0.5°C, increment 1°C freely adjustable, heating rate >60°C/min |
| Focused Cold Trap Temperature Adjustment Range | -35℃~-5℃, Accuracy ±0.5℃ Increment 1℃ freely adjustable |
| Sample-Related Tubing Temperature Adjustment Range | Room Temperature~240℃ (Dependent on ambient temperature) Increments: 1°C, freely adjustable |
| Six-way valve temperature control range | Room temperature ~ 200°C, accuracy ±1°C Increments: 1°C, freely adjustable |
| Sample handling during transfer | Optional, adjustable flow rate, temperature, and time (e.g., backflush sample transport, collection tube activation or aging) |
| Sample Collection Tube Material and Specifications | Stainless steel, quartz glass, specifications (optional) |
| Trapping Tube Material and Specifications | Stainless steel, quartz glass, elastic quartz capillary, etc. (optional) |
| Primary Thermal Desorption Flow Rate | 0~100 m³/min continuously adjustable (with indicator) |
| Pressure Rating for Gas Path and Related Components | ＞0.4 MPa |
| Analytical Accuracy | RSD＜2.5% (Depends on GC performance and operating technique) |
| Linearity | Typically reaches 0.999 under selected sample grouping and corresponding operating conditions |
| Instrument Dimensions/Weight | 480x240x540 mm / 20 kg |
