Multi-parameter Automatic Weather Station
- Product Number:LD-QC7
- Product Difference:Monitor air temperature, air humidity, wind direction, wind speed, precipitation, atmospheric pressure, and ground temperature
+86 19353291814
Online ConsultationProduct Introduction

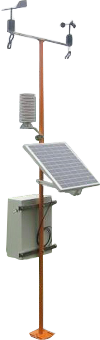

The Automated Weather Station is a high-grade professional meteorological system primarily designed to serve as a data source for meteorological forecasting operations. Featuring a standardized structure and modular design, this system offers high precision, full automation, maintenance-free operation, and high integration. It is suitable for long-term operation in various harsh environments, with monitoring data directly feedable into meteorological observation networks to provide accurate data support for meteorological services.
Product Features
Real-time clock with accuracy better than 10 seconds per month.
Suitable for long-term operation in various harsh environments, with monitoring data directly feedable into the national meteorological observation network, providing accurate data support for meteorological services.
Protection rating: IP65.
Reliability: Maintenance-free, salt-fog resistant, dustproof.
Multiple power controls: Charge/discharge management, temperature compensation, over-discharge protection (AC/DC compatible).
Product parameters
| Air Temperature | －80℃～+60℃, Accuracy ≤±0.2℃ |
| Air Humidity | 0.8~100% RH, Accuracy ±1.2%RH |
| Wind Direction | 0～360°, Accuracy ±3° |
| Wind Speed | 0～75m/s, Accuracy ±(0.3 + 0.03v) m/s |
| Precipitation | Catch basin diameter Φ200 mm, measurement range 0–4 mm/min, accuracy ±4%, output signal: pulse (one pulse = 1mm precipitation) |
| Atmospheric Pressure | 500–1100 hPa, accuracy ±1.5 hPa |
| Surface Temperature | Measurement range: -50 to +80°C, accuracy ±0.3°C, simultaneously observes grass temperature/ snow temperature, surface temperature, shallow soil temperature, and deep soil temperature |
| Extended Parameters | Solar radiation, visibility, cloud height, weather phenomena, Lightning Location, Atmospheric Electric Field, Negative Oxygen Ions, Evaporation, Permafrost Monitoring |
| Data Logger | Custom-designed Data Logger |
| Communication Interface | RS232/GPRS |
| Communication Method | RS232/Wired Direct Connection/ GPRS |
| Power Supply Method | AC 220V/Solar + Battery |
| Power Consumption | 3-5W |
| Operating Environment | Ambient Temperature: -50°C to +80°C, Operating relative humidity 0–100% RH |
| Main Material | Aluminum-titanium alloy |
| Surface Treatment | Hot-dip galvanized with electrophoretic paint finish, primarily white color scheme |
| Installation Height | Standard 10-meter mast, wind resistance ≥75 m/s |
| Mounting Method | Standard meteorological observation field |
