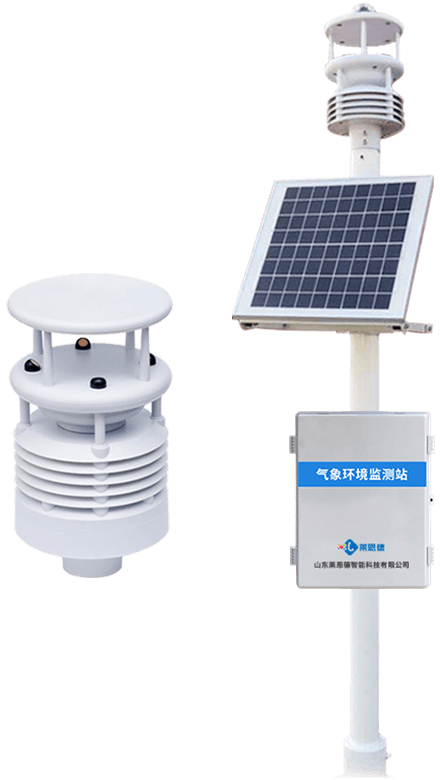

Five-Element Integrated Weather Station

Five-Element Integrated Weather Station

  • Product Number:LD-YQX5
  • Product Difference:Measures temperature, humidity, air pressure, wind speed, and wind direction; optional parameters available

Product Introduction

The Five-Element Integrated Weather Station is a series of products developed based on years of experience in meteorological environmental monitoring and tailored to on-site conditions. This model integrates temperature, humidity, barometric pressure, wind speed, and wind direction into a single unit. Optional parameters include rainfall, radiation, illuminance, PM2.5, PM10, CO, SO2, NO2, O3, and noise. Featuring high integration, sleek design, and no installation or wiring required, it fully replaces traditional piecemeal small automatic meteorological stations.

The Five-in-One Weather Station finds applications in meteorological monitoring, urban environmental surveillance, wind power generation, maritime vessels, aviation airports, bridges, tunnels, and other fields.

Product Features

  • Utilizes advanced sensor technology for real-time measurement.

  • Highly integrated design for easy installation and removal.

  • Operates reliably in all weather conditions, unaffected by heavy rain, snow, ice, or frost.

  • Features ASA engineering plastic for outdoor use with year-round color stability.

  • Delivers high measurement accuracy and stable performance.

  • Maintenance-free with no on-site calibration required.

  • Compact and aesthetically pleasing design.

Product parameters

Monitoring Parameter

Range

Resolution

Accuracy

Configuration

PM2.5

0-1000 μg/m³

1μg/m³

±15% of reading

Optional

PM10

0-1000μg/m³

1μg/m³

±15% of measured value

Optional

Carbon Monoxide

0-12.5ppm

≤10ppb

±1.5%F.S

Optional

Sulfur Dioxide

0-2000ppb

≤10ppb

±1.5%F.S

Optional

Nitrogen Dioxide

0-2000ppb

≤10ppb

±1.5%F.S

Optional

Ozone

0-2000ppb

≤10ppb

±1.5%F.S

Optional

Temperature

-40-60℃

0.01℃

±0.3℃ (at 25℃)

Optional

Relative Humidity

0-100%RH

0.01%

±3%RH

Optional

Wind Speed

0-60m/s

0.01m/s

(0-30m/s) ±0.3m/s or ±3% (30-60m/s) ±5%

Optional

Wind Direction

0-360°

0.1°

±2°

Optional

Atmospheric Pressure

300-1100 hPa

0.1 hPa

±0.5 hPa (0-30°C)

Optional

Precipitation

0-200mm/h

0.2mm

±10% error

Optional

Illuminance

0-100klux

10lux

3%

Optional

Solar Radiation (Photovoltaic/Thermal)

0-2000W/m²

1W

3%

5%

Optional

Noise

30-130dB

0.1dB

±1.5dB

Optional
