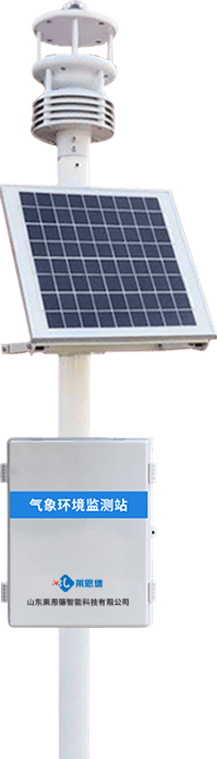

Integrated Mini Weather Station

Integrated Mini Weather Station

  • Product Number:LD-YQX7F
  • Product Difference:Monitor temperature, humidity, atmospheric pressure, wind speed, wind direction, rainfall, and radiation

Product Introduction

The integrated micro weather station series is developed based on years of experience in meteorological environmental monitoring products and tailored to on-site conditions. This series integrates temperature, humidity, barometric pressure, wind speed, wind direction, rainfall, and radiation measurements. Optional parameters include illuminance, PM2.5, PM10, CO, SO2, NO2, O3, and noise. Featuring high integration, sleek design, and zero installation/wiring requirements, it fully replaces traditional piecemeal small automatic meteorological stations.

The integrated micro weather station finds applications in meteorological monitoring, urban environmental monitoring, wind power generation, maritime vessels, aviation airports, bridges, tunnels, and other fields.

Product Features

  • Utilizes advanced sensing technology for real-time measurement.

  • Operates 24/7, unaffected by heavy rain, snow, ice, or frost.

  • High measurement accuracy with stable performance.

  • Compact and aesthetically pleasing design.

  • Highly integrated for easy installation and removal.

  • Maintenance-free with no on-site calibration required.

  • Constructed from ASA engineering plastic for year-round outdoor use without fading.

Product parameters

Monitoring ParameterRangeResolutionAccuracyConfiguration
Temperature-40-60℃0.01℃±0.3℃ (at 25℃)Standard
Relative Humidity0-100%RH0.01%±3%RHStandard
Wind Speed0-60m/s0.01m/s(0-30 m/s) ±0.3 m/s or ±3% (30-60 m/s) ±5%Standard
Wind Direction0-360°0.1°±2°Standard
Atmospheric Pressure300-1100 hPa0.1 hPa±0.5 hPa (0-30°C)Standard
Precipitation0-200mm/h0.2mm±10% errorStandard
Solar Radiation (Photoelectric/Thermal)0-2000W/M21W3% / 5%Standard
Illuminance0-100klux10lux3%Optional
Noise30-130dB0.1dB±1.5dBOptional
PM2.50-1000μg/m³1μg/m³±15% of measured valueOptional
PM100-1000μg/m³1μg/m³±15% of measured valueOptional
Carbon Monoxide0-12.5ppm≤10ppb±1.5%F. SOptional
Sulfur Dioxide0-2000ppb≤10ppb±1.5%F.SOptional
Nitrogen Dioxide0-2000ppb≤10ppb±1.5%F.SOptional
Ozone0-2000ppb≤10ppb±1.5%F.SOptional
