Plant Root Analyzer
- Product Number:LD-GX01S
- Product Difference:A3 Photo-Based Root System Image Analysis
+86 19353291814
Online ConsultationProduct Introduction

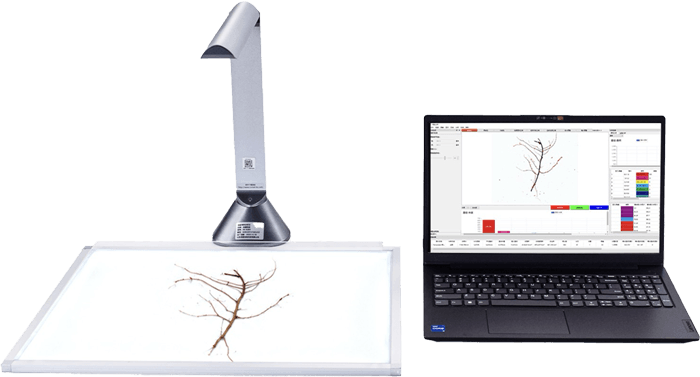

The photographic plant root analyzer is designed for the rapid imaging and automated, multi-parameter, batch analysis of cleaned roots with a diameter of 0.5 mm or greater. The complete system consists of a document camera, analysis software (PC-based), and a computer (provided by the user), and its imaging speed is 20 times faster than that of a scanner-based system.
Product Features
Product parameters
| Imager | A 22-megapixel color imager with autofocus. Effective analysis area up to 297 × 420 mm. Particularly suitable for rapid, automatic analysis and measurement of root systems with diameters of 0.5 mm or greater. |
| Measurements and analyses include | (1) Total root length; (2) Branching frequency; (3) Average root diameter; (4) Median root diameter; (5) Maximum diameter; (6) Total root area; (7) Total projected area; (8) Total root volume; (9) Root tip count; (10) Branch count; (11) Overlap count; (12) Root diameter grade distribution parameters; (13) Customizable diameter segments with non-equidistant intervals; automatically measures length, projected area, surface area, volume, and other parameters for each diameter segment, as well as their distribution parameters; (14) Capable of performing root system color analysis, outputting the diameter, length, projected area, surface area, and volume of roots of different colors; (15) Capable of performing root system topological analysis, automatically determining the number of root connections, relationship angles, etc., and can also automatically analyze the length, area, volume, and other parameters of any individual root segment separately; it can display the corresponding parameters for any diameter segment of a marked root system individually (with customizable, non-equidistant intervals); (16) Capable of performing root correction operations such as branch trimming, merging, and connecting; correction operations can be undone to quickly obtain 100% accurate results; (17) Capable of automatically measuring root fractal dimension using the box-dimension method. It can analyze the number of root nodules to objectively determine the contribution of rhizobia; (18) It performs fully automated root system analysis in bulk, with batch saving capabilities. The overall data can be summarized and saved in a single spreadsheet, or detailed data for each root system can be saved individually; (19) Extracts analytical characteristics from geometric angle and horizontal angle analyses; (20) All analysis images, distribution maps, and result data can be saved and exported to Excel spreadsheets; analysis annotation maps can also be exported; (21) The instrument is supported by a cloud platform, allowing analysis data to be saved to the cloud for viewing anytime, anywhere; (22) Built-in bilingual (Chinese and English) display with one-click switching for seamless integration; |
| Optional | brand computer (9th Gen or later Intel Core i5 CPU / 16 GB RAM / 24” color monitor / wireless network card, 4 or more USB 2.0 ports, running Windows 10 Full Professional or Enterprise Edition) |
