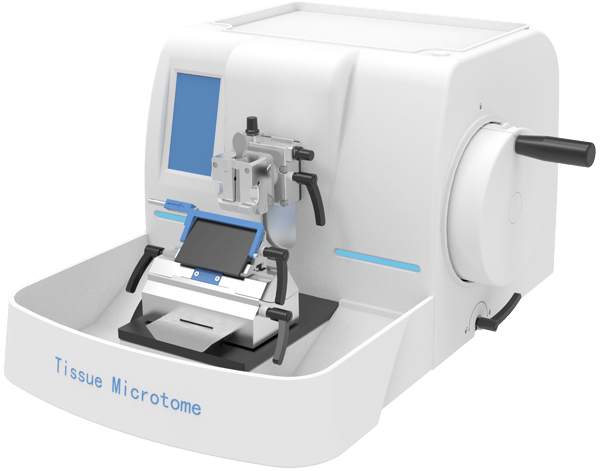

Semi-Automatic Rotary Slicer

Semi-Automatic Rotary Slicer

  • Product Number:LD-QP10
  • Product Difference:A precision instrument capable of producing sections ranging from 0.5 to 100 μm in thickness, used for sectioning biological tissues, pathological specimens, and materials science samples

Product Introduction

A rotary microtome is a precision instrument specifically designed for sectioning biological tissues, pathological specimens, and materials science samples. Featuring an advanced rotary design, this device is capable of producing continuous sections with micrometer-level thickness and is widely used in hospital pathology departments, research institutes, and university laboratories.

Applications include the following fields:
1. Medical Pathology: Preparation of tissue sections for disease diagnosis.
2. Life Sciences: Cellular and histological research.
3. Materials Science: Microstructural analysis of materials.
4. Educational Experiments: Biomedical teaching demonstrations.

Product Features

  • High Stability: Features a base made of high-quality alloy material to ensure it remains distortion-free even after long-term use.

  • Easy to Operate: User-friendly design that’s easy to learn and master.

  • Safe and Reliable: Multiple safety protection mechanisms.

  • Easy to Maintain: Modular design facilitates cleaning and maintenance.

Product parameters

Slice Thickness Setting0.5–100 μm
Trimming Thickness Setting1–600 μm
Automatic Sample Retraction FunctionAdjustable from 1 to 100 μm, can be disabled
Tool holder base fore-and-aft movement30 mm
Tool holder base left-to-right movement54 mm
Tool holder angle adjustment0–15°
Coarse feed/ Rough RetractionHandwheel Feed
Sample Vertical Travel Distance70 mm
Sample Front-to-Back Travel Distance30 mm
Sample XY-Axis Angle Adjustment Range±8°
Half-Cut/ Full CutAutomatic Recognition
Blade CompatibilityWide/ Narrow
DisplayHigh-definition 5-inch capacitive touchscreen
Sample memorySupported
360-degree handwheel lockingSupported
Top handwheel lockingSupported
Tool retractionSupported
Blade GuardSupported
Drive SystemServo Motor, Absolute Encoder
Guide RailsImported High-Precision Crossed Roller Guide Rails
Lead ScrewHigh-Precision Lead Screw
Balancing SystemPrecision dynamic balancing design
VoltageAC 220V
Rated Power200W/AC 220V
Dimensions and Weight445 x 594 x 319 mm, 46 kg
