Liquid Particle Counter

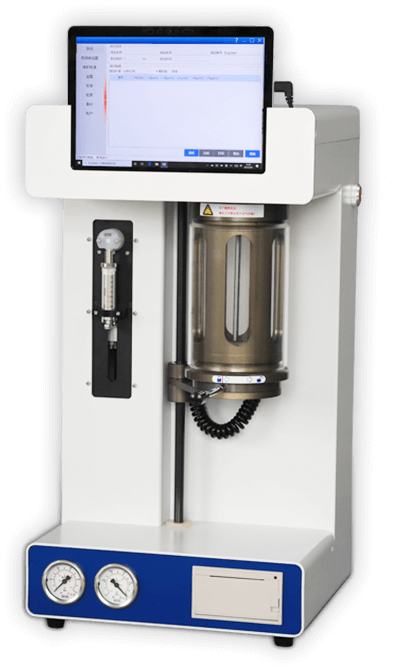

The Y20 Liquid Particle Counter is an upgraded version of the Y10, employing the light-blocking (opacity) counting principle specified by the International Hydraulic Standards Committee. It is specifically designed for rapid on-site detection and analysis of oil particle size, cleanliness, and contamination levels.

Featuring a compact size, lightweight design, fast detection speed, high accuracy, and excellent repeatability, it operates reliably under extremely harsh conditions such as high temperatures and pressures. Integrated micro-water and temperature sensors enable simultaneous monitoring of water content and oil temperature during contamination testing. This particle counter is suitable for transformer oil (insulating oil), hydraulic oil, lubricating oil, synthetic oil, and other fluids. It finds extensive application across power plants, aerospace, petrochemicals, transportation/ports, steel/metallurgy, and automotive manufacturing sectors.

• Utilizes the photoresist (light-blocking) principle with high-precision laser sensors, offering compact size, high accuracy, and stable performance.

• Features a built-in data analysis system that automatically classifies sample grades based on standards, with automatic data processing and printing capabilities.

• Supports external pressure chambers to generate positive/negative pressure, enabling testing of high-viscosity samples and sample degassing.

• The integrated data analysis system displays real-time particle size data for each channel and automatically determines sample grades.

• Piping utilizes 316L stainless steel and PTFE materials, suitable for testing various organic solvents and oils.

• Features volume flush and time-based flush modes for convenient equipment operation and maintenance.

• Suitable for laboratory or field testing; optional pressure reduction device enables online high-pressure measurement for real-time monitoring of particle contamination in oil systems.

• Built-in particle contamination grade standards include ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420B, ГOCT17216, GB/T14039, and others.

• Built-in calibration function supports standards including GB/T21540, ISO4402, and GB/T18854.

• Dual-language interface (Chinese/English) with one-touch switching. Features preset, input, edit, and storage functions. 10.2-inch large screen for convenient and efficient operation.

• Extensive storage capacity with options for internal instrument storage or external storage devices.

• Embedded design with a high-strength housing for portability, suitable for various types of construction machinery.

• Built-in micro-moisture sensor and temperature sensor.
