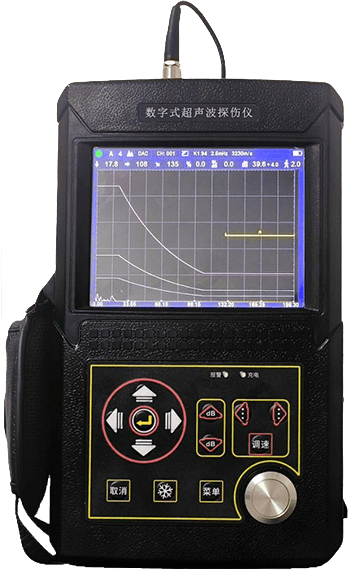

Ultrasonic flaw detection equipment

Ultrasonic flaw detection equipment is a portable industrial non-destructive testing instrument capable of conducting portable, non-destructive, and accurate detection, localization, evaluation, and diagnosis of various internal defects (cracks, porosity, inclusions, etc.) in workpieces. It can be used both in laboratories and at engineering sites. Applications span industries including boilers, pressure vessels, aerospace, power generation, petroleum, chemical processing, offshore oil, pipelines, shipbuilding, automotive, machinery manufacturing, metallurgy, metal fabrication, steel structures, rail transportation, nuclear power, and higher education institutions.

• Automatically generates DAC and AVG curves using standard test blocks, with unlimited sampling points and support for compensation and correction.

• Automatically displays echo-related parameters (Depth D, Horizontal P, Distance S, Amplitude H).

• Freely switch between three scales (Depth D, Horizontal P, Distance S).

• 100 inspection channels, freely input and store inspection standards for any industry (expandable).

• Store up to 300 A-scans and parameters (expandable per user requirements).

• Automatically calculates defect equivalent φ values with peak memory function.

• Two detection modes: Peak and Edge.

• Three probe modes: Single Crystal, Twin Crystal, and Penetration.

• Automatic damping matching, intelligent operation with automatic gate alarms; generates custom inspection procedures based on actual workpieces, eliminating the need for test blocks during on-site inspections.

• Lithium battery powered, 8-hour operating time.

• Rugged and durable with triple protection against water, oil, and dust, extending service life and offering superior interference resistance—several times longer than conventional flaw detectors.

• Large high-brightness display suitable for inspection under sunlight or in tunnels.

• Gates: Incoming wave gate, lost wave gate. Single-gate readings, dual-gate readings.

• Built-in USB port; insert SD card to record flaw detection process.

• Alarms: Audible buzzer alarm, LED indicator alarm.
