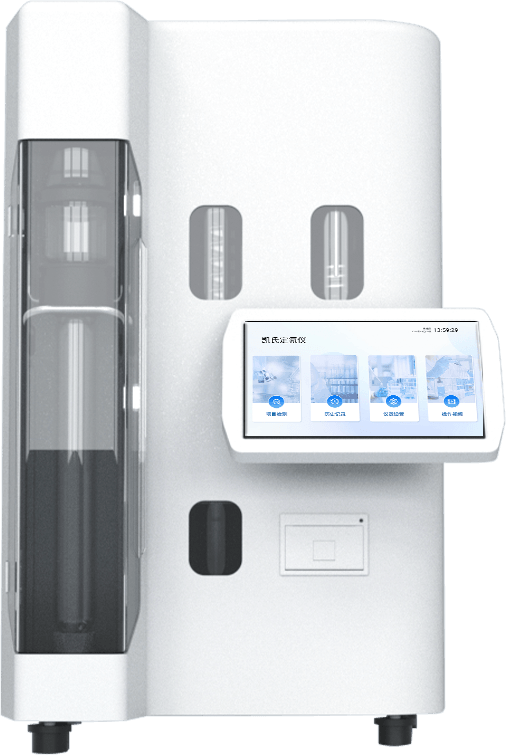

Fully Automatic Kjeldahl Nitrogen Analyzer

The fully automatic Kjeldahl nitrogen analyzer is an automated instrument that determines nitrogen and protein content using the Kjeldahl method. It is widely used for the analysis of nitrogen and protein in fields such as food processing, feed production, tobacco, animal husbandry, soil and fertilizer, environmental monitoring, pharmaceuticals, agriculture, scientific research, and education.

Based on the principles of the Kjeldahl method, the instrument automatically performs the following steps on digested samples: quantitative addition of reagents, distillation, absorption, titration, and output of test results. The results can be expressed as nitrogen content or converted to protein content. The specific reaction steps are as follows: after sample digestion, the resulting ammonium sulfate reacts with a base to produce ammonia gas. The ammonia gas, together with steam, passes through a condenser where it is condensed and collected in an absorption solution containing boric acid. Simultaneously, an indicator in the absorption solution undergoes a color change. The instrument then performs automatic titration; a color sensor automatically determines the titration endpoint, and the nitrogen content of the sample is calculated based on the consumption of the standard titrant.

The fully automatic Kjeldahl nitrogen analyzer completes all steps automatically according to a preprogrammed sequence. This provides significant convenience for laboratory personnel conducting nitrogen and protein determinations. It is characterized by safety, reliability, ease of operation, and time and labor savings.

• Android 10 operating system, 10.1-inch touchscreen.

• Automatically performs liquid addition steps such as adding alkali, boric acid, diluent, and distilled water; automatically performs operational steps such as distillation, absorption, and titration; automatically empties and cleans the reaction cup after titration is complete.

• Protective features include evaporation furnace water level monitoring, dry-burn protection, condensate flow rate monitoring, and condenser tube temperature detection.

• High-capacity 16GB storage, capable of storing up to 5 million test results.

• Test results are exported as Excel spreadsheets and can be copied directly to a USB drive.

• Test results can be printed and uploaded in batches.

• High-speed thermal printer automatically prints test reports upon completion.

• Wi-Fi connectivity allows test results to be uploaded directly to the platform.

• Program-controlled activation and deactivation of the condensate drain to conserve water.

• Condensate flow rate monitoring with low-flow rate alarms.

• Multiple safety protections for evaporator water level, temperature, and pressure.

• Constructed with highly corrosion-resistant components.
