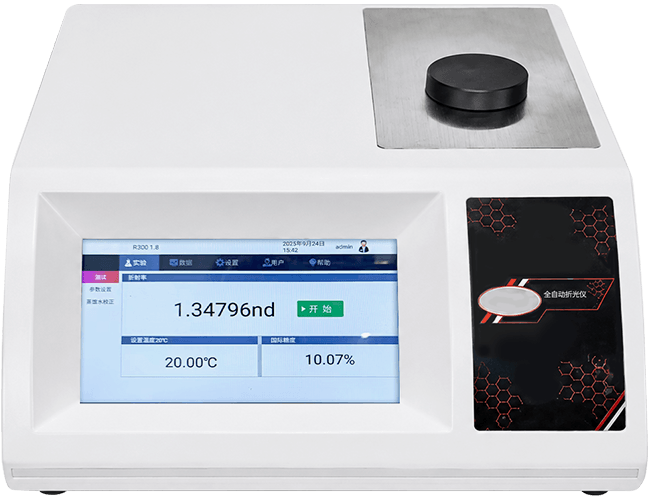

Fully Automatic Refractometer

Fully Automatic Refractometer

  • Product Number:LD-QZG10
  • Product Difference:Temperature control range: Room temperature

Product Introduction

The DigiPol-R series of fully automatic refractometers is equipped with a high-performance linear CCD sensor. Utilizing high-speed, high-precision signal acquisition and analysis technology, it features a semiconductor Peltier super temperature control system. It can efficiently and accurately measure the refractive index (nD) of various liquids—including transparent, translucent, dark-colored, and viscous liquids—as well as the mass fraction (Brix) of sugar solutions.

These fully automatic refractometers are widely used in the petroleum, oil and fat, pharmaceutical, food, daily chemical, and sugar industries, and are also common equipment in schools and related research institutions.

Product Features

  • Peltier temperature control, high precision, and high stability.

  • 7-inch touchscreen with a user-friendly interface for easy operation.

  • High efficiency and precision for accurate data measurement.

  • Complies with national standards, quality guaranteed.

Product parameters

Range1.30000–1.70000 (nD)
Resolution0.00001
Accuracy±0.0001
Precision±0.0002
Sugar Content Range0–100% (Brix)
Accuracy±0.1% (Brix)
Test ModeRefractive Index/Sugar Content or Custom
Temperature Control MethodNone
Temperature Control RangeRoom Temperature
Light SourceLED Light Source
Wavelength589nm
PrismSapphire Grade
Sample CellStainless Steel
Detection MethodHigh-Resolution Line-Scan CCD
Display7-inch FTF Color Touchscreen
Data Storage32GB
Output OptionsUSB, RS232, RJ45, SD card, USB flash drive
User ManagementYes/ Four-level permission management
Electronic signatureYes
Custom method libraryYes
High-level MD5 file export verificationYes
Wi-Fi printingYes
Multiple File Format ExportPDF and Excel
Power Supply110-220V/50-60Hz
Dimensions and Weight430mm × 380mm × 300mm, 5kg
