Meteorological Environmental Monitoring Station

The Multi-Element Meteorological Monitoring Station is a comprehensive observation station developed and manufactured in accordance with the meteorological observation standards of the World Meteorological Organization (WMO). It operates fully automatically around the clock in unmanned, harsh environments. It can form a mesoscale meteorological monitoring network, with each automatic weather station functioning as a sub-station transmitting data to the central station. It features automatic recording, threshold monitoring, and data communication capabilities. Data monitoring and analysis can be conducted via PC terminals, with real-time mobile access available through smartphone applications.

The Meteorological Environment Monitoring Station is widely applied in: meteorological environment research, field climate science studies, agricultural weather forecasting services, natural disaster prevention and control, hydrological and water conservancy monitoring, livestock farming environmental early warning services, mesoscale dense networks, grid-based forecasting services, high-resolution weather forecast data sources, key monitoring for flash flood warnings, regional meteorological environment observation, industry service systems, campus meteorological systems, environmental protection meteorological monitoring, general aviation airports, research institutes, educational practice in schools, industrial environmental protection, scenic area environmental monitoring, and more.

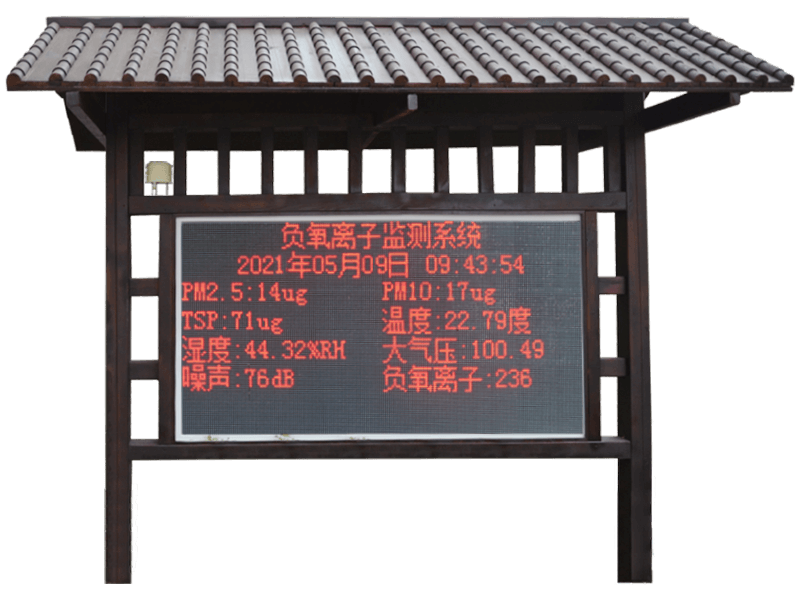

• The monitoring station comprises seven major components: the monitoring platform, data acquisition system, communication system, sensor system, power supply system, real-time monitoring system, and mechanical mounting system. It can simultaneously monitor multiple meteorological and environmental parameters including air temperature, air humidity, light intensity, atmospheric pressure, dew point temperature, soil temperature, soil moisture, soil salinity, soil pH, wind speed, wind direction, rainfall, ultraviolet radiation, sunshine duration, total radiation, and photosynthetically active radiation. This is integrated with real-time observation and LED display capabilities.

• Featuring an open and user-friendly design philosophy, users can independently modify component configurations and modules to rapidly adapt data acquisition methods and expand monitoring parameters.

• Features industrial-grade processing chips housed in an ABS shell, delivering a lightweight, robust, and aesthetically pleasing design. Equipped with a 192*64 full dot matrix LCD display capable of graphical representation or 12*4 Chinese character display (optional 7-inch LCD screen available), suitable for various harsh environments.

• Features external USB storage expansion capability.

• Supports various meteorological sensors including air temperature, air humidity, light intensity, atmospheric pressure, dew point temperature, soil temperature, soil moisture, soil salinity, soil pH, wind speed, wind direction, rainfall, UV radiation, sunshine duration, total radiation, and photosynthetically active radiation (optional based on requirements).

• Main pole surface treated with hot-dip galvanization and electrostatic powder coating for superior corrosion resistance. Pole height: 3.5 meters, equipped with wind-resistant guy wires.

• Reliability: Maintenance-free, salt-fog resistant, dustproof.

• Supports real-time and historical data queries, export, and printing for any time period.

• Supports single-parameter statistics: Calculates maximum, minimum, and average values for a single parameter by year, month, day, hour, 10-minute interval, or any custom timeframe.

• Real-time, all-weather data reception generates live curves and can be visualized through intuitive formats like bar charts and pie charts.
