Negative Ion Detector

The Portable Negative Oxygen Ion Detector is a high-precision, professional-grade instrument for detecting and analyzing airborne negative ions. It employs an advanced cylindrical capacitor structure negative (oxygen) ion capture mechanism to trap negative (oxygen) ions present in the atmosphere. These ions are then subjected to precise statistical calculations via a unique algorithm. The device offers advantages including stable measurement processes, rapid response times, and accurate results. It also exhibits strong resistance to electromagnetic, electrostatic, and electromagnetic wave interference, with sensitivity and capture capability for small-particle-size negative ions, delivering superior overall performance.

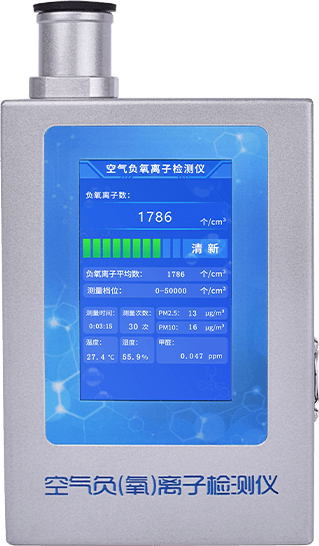

The FY1 Portable Negative (Oxygen) Ion Detector features simple operation. Its 5.0-inch full-color display shows real-time measurement data, instrument status, and automatically calculates averages. Operators with no prior knowledge can perform measurements quickly without specialized training.

This negative oxygen ion detector provides real-time measurement of atmospheric negative oxygen ion concentrations in air. It serves as an optimal tool for environmental monitoring, nano-coatings, negative ion health products, negative ion home decoration materials, indoor testing, air treatment, air purifiers, and related products requiring negative ion concentration measurement and demonstration.

The negative oxygen ion detector employs the “capacitive inhalation method” principle to measure negative ion concentrations in air. A specific polarization voltage is applied to the polarization plate (or bias plate) of the ion sensor (also known as the collection bucket or collection cylinder). The air sample is then passed uniformly through the sensor at a preset velocity. Under the influence of the electric field, specific small-sized negative ions in the air are deflected and captured by the collection plate. The negative charge quantity of the collected ions is processed by the collector, enabling the calculation of the negative ion charge concentration value.

• Display: 5.0-inch capacitive touchscreen with 800×480 high resolution, providing real-time negative (oxygen) ion measurement results.

• Extended Standby: Built-in high-capacity lithium battery (12V 3000mAh) enables operation without power or location constraints—simply turn on and measure.

• Accurate Measurement: Utilizes internationally advanced cylindrical capacitive inhalation method for measurement.

• Compact Design: Features a compact internal structure and elegant appearance, suitable for diverse environmental testing and convenient for mobile use.

• Responsive Performance: Data refresh rate reaches 1 second per update.

• Simple Operation: Intuitive instrument controls with a large, clear full-color display.
