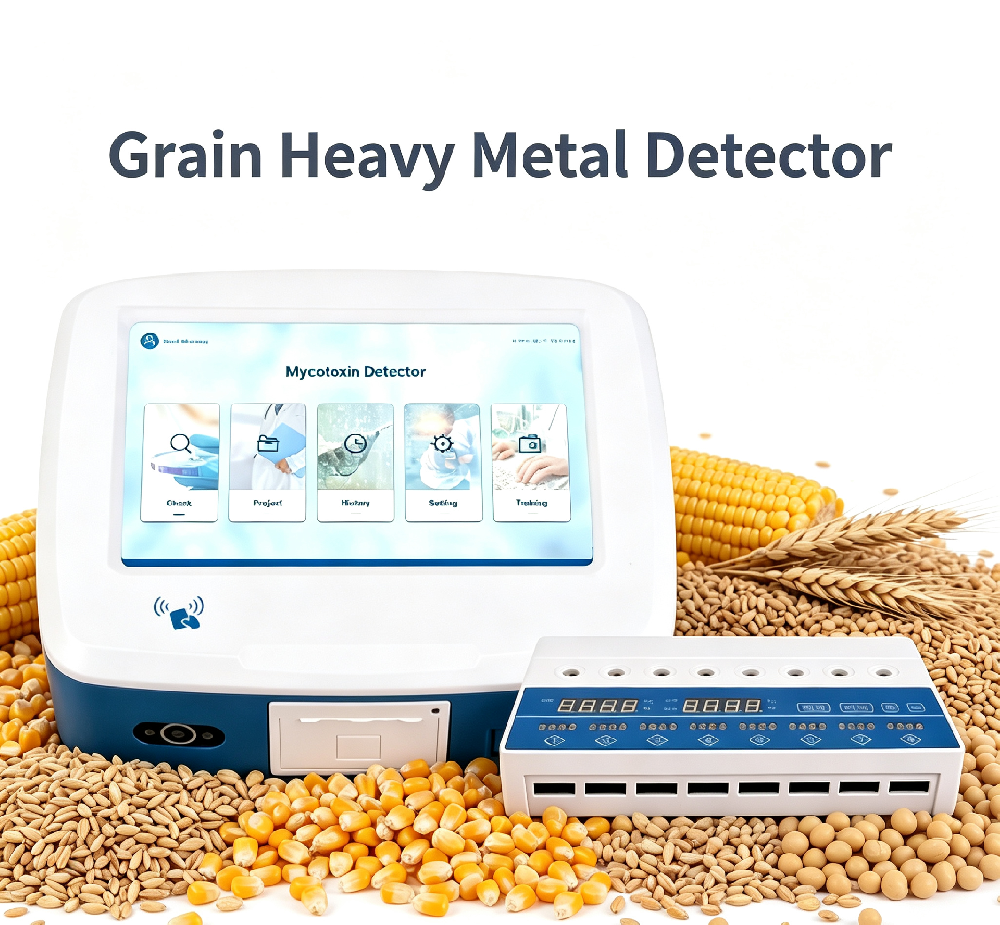

LD-LS1 Grain Heavy Metal Detector: Fast, Accurate Testing for Full Food and Feed Safety Compliance

As global food safety regulations grow more stringent across the grain supply chain, B2B operators including grain processors, feed manufacturers, and third-party testing labs need reliable, high-throughput heavy metal screening tools that do not compromise on accuracy. The LD-LS1 grain heavy metal detector is purpose-built to fill this gap, combining fluorescence immunochromatography technology with user-centric design to remove the barriers of traditional lab-based heavy metal testing methods.

Core Advantages of the LD-LS1 Grain Heavy Metal Detector for Food Safety Teams

Unlike cumbersome chromatographic testing systems that require hours of processing and highly trained lab staff, the LD-LS1 grain heavy metal detector integrates the speed of colloidal gold testing, quantitative precision of ELISA assays, and accuracy of chromatographic methods to deliver consistent, actionable results. It uses imported uniform fluorescent microspheres to deliver industry-leading stability, with a fluctuation coefficient (SW) of no more than 5% across batches. The integrated 8-well constant temperature incubator controls each channel independently, with automatic timing that triggers a buzzer alert once incubation is complete, eliminating interference from external temperature or humidity variations to deliver reliable performance even in unconditioned field environments.

All standard quantitative curves are pre-loaded into the system, so operators do not need to prepare standard reference materials or run calibration curves before testing. This feature not only cuts down unnecessary workflow steps, but also eliminates the risk of operator exposure to harmful toxins during sample preparation. The system also includes full built-in quality control functions, supporting automatic equipment self-inspection, pre-test verification of reagent cards to eliminate false judgements, and foolproof card insertion detection that prevents invalid testing runs if no test card is properly loaded.

Key Technical Specifications for Reliable Field and Lab Deployment

The LD-LS1 grain heavy metal detector is engineered for 24/7 reliable operation across diverse working conditions. It runs on Android 7.1.1 operating system, paired with a 10.1-inch 1280*800 high-definition touchscreen for intuitive, lag-free operation. The 365nm light source and photoelectric cell detector deliver automatic reflective scanning in less than 5 seconds per individual test, with a maximum system error of ≤5% and test repeatability (CV) of no more than 3%, and a detection resolution of 0.001 for ultra-precise quantification.

The compact main unit measures 300235125mm and weighs only 2.2kg, making it easy to move between testing stations. It is supplied with a military-grade shockproof, IP54 waterproof aviation aluminum trolley case with silent universal wheels, holding all pre-processing accessories to support on-site deployment. The system supports wide voltage input from AC 100V to 240V, and operates stably at ambient temperatures between 0℃ and 50℃ and relative humidity up to 90%, adapting to working environments across all global regions.

Top Use Cases Across the Global Grain and Food Supply Chain

The LD-LS1 grain heavy metal detector is validated to test a wide range of sample matrices, including all common cereal grains (rice, wheat, corn, barley, sorghum) and their processed products, raw materials and finished products for animal feed, edible vegetable oils, and dairy products including milk and milk powder. It specifically targets quantitative detection of lead and cadmium, the two most frequently regulated heavy metal contaminants in grain and feed products worldwide.

It is the ideal testing solution for local government grain reserve depots, large grain production and processing facilities, feed mills, livestock and poultry breeding enterprises, flour mills, packaged food manufacturing plants, independent third-party testing laboratories, and national and regional food safety regulatory agencies. All sample pre-processing steps are simplified to reduce hands-on operation time, and the full end-to-end testing workflow takes only 12 minutes from sample loading to final result output.

Streamlined Operation and Data Management for Maximum Workflow Efficiency

The LD-LS1 grain heavy metal detector requires only minimal training for new operators, with built-in on-screen tutorial videos to guide users through full testing steps without prior professional analytical lab experience. The 1+8G memory configuration supports storage of over 100,000 test results, with optional expansion via TF memory card for long-term data archiving and traceability. Users can pre-set customized threshold limits for each test item, and the system will automatically judge whether a sample exceeds safety limits once testing is complete, and save the tagged result to the database.

Multiple data transmission options including WiFi, Bluetooth, USB, LAN, RFID card reading and QR code scanning are supported, to facilitate batch data aggregation and seamless upload to local or national food safety regulatory platforms. The built-in thermal printer supports immediate on-site printing of test reports, and users can customize header and footer text on printed outputs to match their internal documentation standards. The system supports both English and Chinese language interfaces, and allows future expansion of additional testing items to meet evolving compliance requirements.

If you are sourcing a high-performance, low-operational-cost grain heavy metal detector that supports both lab and on-site testing to meet your food safety compliance obligations, the LD-LS1 is the optimal choice for your team. Our technical specialists can provide full customized demo and deployment support, contact us for a quote to learn more about how this system can upgrade your existing heavy metal screening workflow.

Frequently Asked Questions

Q: What heavy metals can the LD-LS1 grain heavy metal detector test for, and what sample types are supported?A: This grain heavy metal detector is purpose-built for accurate quantitative detection of lead and cadmium, the two most strictly regulated heavy metal contaminants in the global grain supply chain. It supports testing for all common cereal grains and their processed products, raw and finished feed, edible vegetable oils, and dairy products including liquid milk and milk powder.

Q: Do I need to have professional analytical lab experience to operate the LD-LS1 grain heavy metal detector?A: No, specialized advanced lab training is not required. The system is designed with an intuitive Android touch interface, with built-in step-by-step operation tutorial videos. Most operators can master full testing procedures after 1 to 2 hours of basic training, and the simplified sample pre-processing workflow cuts down complex manual operation steps significantly.

Q: Can test data from the LD-LS1 grain heavy metal detector be used for official regulatory compliance reporting?A: Yes. The system stores full traceable test data with unique identifiers for each sample, supports customized threshold setting aligned with local regulatory standards, and can upload aggregated results directly to designated regulatory management platforms. Printed test reports from the built-in thermal printer also meet most internal quality control and third-party audit documentation requirements.
