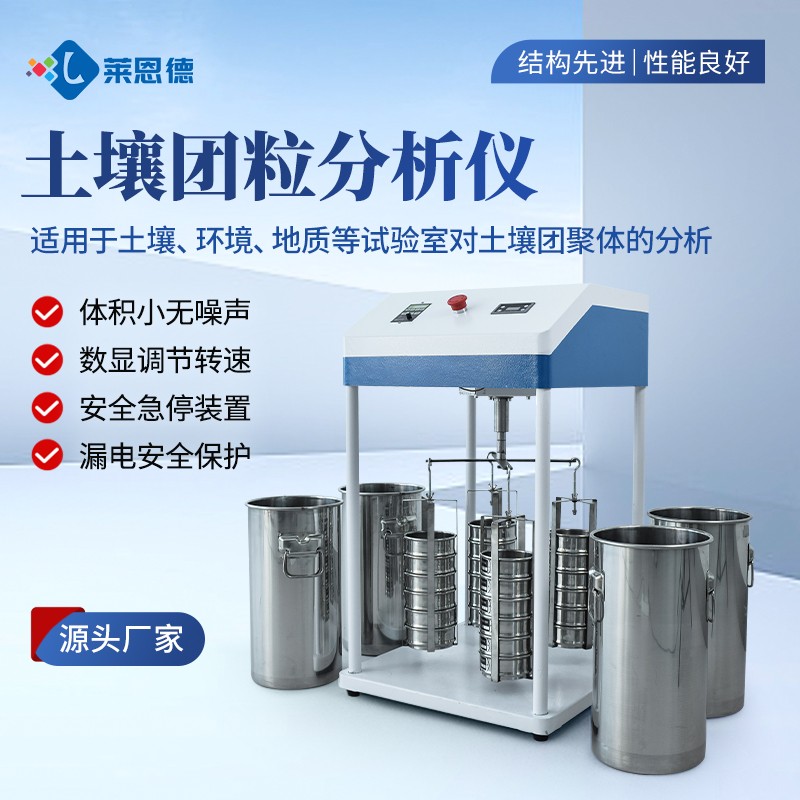

LD-TL100 Soil Aggregate Analyzer: Precision Testing Equipment for Soil Aggregate Structure & Fertility Assessment

Soil aggregate structure is the foundational driver of soil fertility, supporting balanced air-water exchange, nutrient retention, stable soil temperature, and unobstructed crop root growth for agricultural, ecological, and geological research. For decades, reliable measurement of mechanical-stable and water-stable soil aggregate distribution has been a core priority for labs working on soil health assessment, land restoration, and agricultural technology development. The LD-TL100 soil aggregate analyzer is purpose-built to streamline this testing workflow, eliminating manual testing errors and delivering consistent, reproducible results for all types of soil sample analysis.

What Makes Soil Aggregate Analysis Indispensable for Modern Lab Operations

Soil aggregates refer to the total collection of differently sized, irregularly shaped soil particles bound together by colloidal coagulation, cementation, and adhesion, with varying porosity, mechanical stability, and water stability. Among these particles, large macro-aggregates with a diameter of 0.25mm to 10mm, bound by calcium, magnesium, organic matter, and fungal hyphae, are classified as water-stable large aggregates that resist disintegration even after prolonged immersion and oscillation in water. The proportion and distribution of these water-stable large aggregates directly determine the overall health of topsoil, and their accurate measurement cannot be completed with standard lab sieving equipment. A dedicated soil aggregate analyzer standardizes the dry sieving process to map mechanical-stable aggregate distribution first, then mixes the separated aggregates per test protocol for wet sieving to quantify water-stable aggregate levels, removing human error from manual operation steps.

Core Standout Features of the LD-TL100 Soil Aggregate Analyzer

Designed with lab efficiency and long-term durability as top priorities, the LD-TL100 integrates multiple industry-leading upgrades that set it apart from generic soil testing equipment. Its compact structure, composed of a precision speed regulator, reduction gear set, and balanced support frame, occupies minimal bench space, weighs only 50kg, and operates with zero noise interference even during extended test cycles. The built-in full copper coil调速电机 (speed regulating motor) runs smoothly with high torque, high energy efficiency, and no overheating issues for long-duration runs.

Powered by advanced MCU digital control technology, this soil aggregate analyzer uses a clear digital display menu system that lets lab technicians adjust settings in seconds, with customizable display magnification to automatically convert and show target test values directly. The front panel control knob automatically matches the maximum allowed speed for each test setup, ensuring safe, intuitive speed adjustment. A dedicated independent digital timer manages start and stop functions with clear, easy-to-operate controls, and the integrated stall protection feature prevents damage to the motor and speed regulator in case of unexpected blockages. For maximum operational safety, the unit is fitted with dual-control emergency stop switches with non-slip locking design, a 10A leakage protector with full short circuit, overload, leakage protection and flame-retardant housing, and an automatic stop function that cuts power immediately when tests complete. Its unique cross-shaped oscillation rack can hold up to 4 sets of standard sieves at the same time, paired with heavy-duty thickened stainless steel buckets with integrated carry handles for easy transport and cleaning.

Key Technical Specifications for Reproducible Test Performance

All parameters of the LD-TL100 soil aggregate analyzer are calibrated to meet global standard soil testing protocols, with flexible customization options to match unique lab requirements. The main unit measures 500mm × 500mm × 890mm, with 200mm diameter × 400mm high sample buckets, and standard 100mm diameter × 40mm high test sieves that come with 6 standard pore size options: 5mm, 3mm, 2mm, 1mm, 0.5mm, and 0.25mm, with optional custom pore sizes available on request.

The unit’s digital speed display shows real-time rotation speed, with a 1400rpm rated motor speed, and adjustable vibration frequency ranging from 0 to 56 cycles per minute. Vibration amplitude can be customized to 30mm, 40mm, or 50mm (50mm as default) to fit different test protocols, and the integrated digital timer supports a timing range from 0 to 9999 minutes to accommodate both short and long-duration wet sieving tests. The unit runs on 220V 50Hz power with 120W rated power, suitable for standard lab power supply configurations across most regions.

Top Application Scenarios for B2B Buyers Worldwide

The LD-TL100 soil aggregate analyzer is widely adopted across a full range of professional testing facilities, including soil science research laboratories, environmental monitoring agencies, geological survey institutes, agricultural technology R&D centers, and third-party soil testing service providers. It supports use cases ranging from agricultural soil fertility assessment for large crop planting regions, post-restoration soil structure monitoring for degraded land, to geological soil property analysis for infrastructure construction projects.

If you are sourcing a high-performance, low-maintenance soil aggregate analyzer to upgrade your lab’s soil testing capabilities, the LD-TL100 is fully compliant with international standard soil aggregate analysis protocols, with all safety and performance features verified through strict factory testing. We offer tailored configuration solutions to match your unique lab workflow needs, contact us for a quote to get full technical documentation and customized support from our professional team.

Frequently Asked Questions

Q1: Can the LD-TL100 soil aggregate analyzer process multiple samples in a single test run?A1: Yes. Its patented cross-shaped oscillation rack supports simultaneous placement of 4 sets of standard sieves, allowing labs to run up to 4 parallel test samples at the same time, which drastically improves testing throughput for high-volume soil analysis projects and reduces total test turnaround time.

Q2: Can I customize the vibration parameters and sieve specifications to match my lab’s existing standard operating procedures?A2: Absolutely. The LD-TL100 supports fully customizable vibration amplitude (30mm, 40mm, 50mm, with 50mm as default), optional sieve pore sizes beyond the standard 5mm to 0.25mm range, and adjustable vibration frequency from 0 to 56 cycles per minute, all of which can be adjusted to align with your lab’s established test protocols.

Q3: What safety protection features are integrated to reduce operational risks during long test cycles?A3: This soil aggregate analyzer is equipped with dual-control emergency stop switches, a full-featured 10A leakage protector that provides short circuit, overload, and leakage protection with a flame-retardant housing, dedicated motor stall protection, and automatic power-off stop function, all of which eliminate common lab equipment safety hazards during extended test operations.
