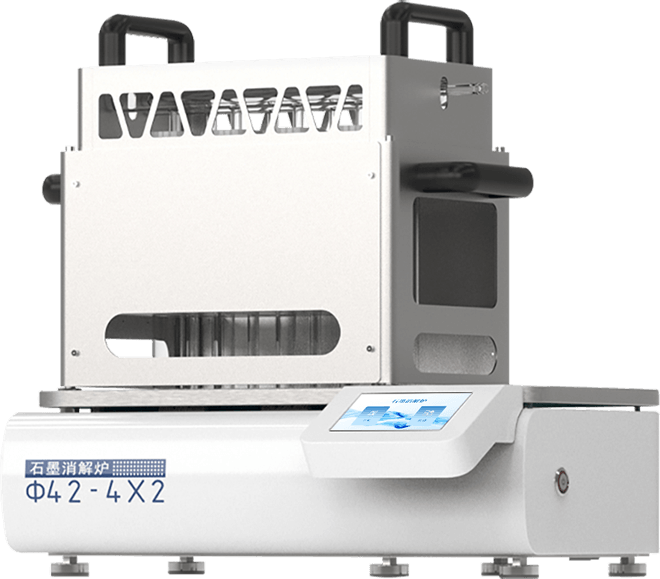

Digestion Furnace

Digestion Furnace

  • Product Number:LD-SM08
  • Product Difference:Number of holes: 4×2

Product Introduction

Digestion furnaces offer the advantages of rapid, efficient, and convenient digestion. They are suitable for use in industries such as food, pharmaceuticals, and agriculture, as well as in universities and research institutions, for the digestion of samples such as soil and feed prior to chemical analysis. They are particularly well-suited for use in conjunction with Kjeldahl nitrogen analyzers.

Product Features

  • The instrument is operated via a 5-inch color touchscreen running the Android operating system, making it convenient and efficient.

  • PID temperature control technology ensures high control accuracy and rapid heating, reaching 450°C from room temperature in just 30 minutes.

  • The multi-stage temperature control settings allow for either single-stage or multi-stage heating, offering flexible configuration; the instrument automatically executes the process in sequence. This is particularly suitable for samples prone to foaming.

  • Features a high-quality graphite furnace liner with minimal average temperature variation, ensuring consistent sample digestion results and higher thermal conductivity. The graphite block is coated with Teflon for corrosion resistance, extending its service life.

Product parameters

Graphite furnace portsPort diameter: 43 mm, port depth: 60 mm, number of ports: 4×2
Temperature control rangeRoom temperature to 450°C
Temperature Control Accuracy±1°C
Temperature Control Zones1–5 zones
Heating MethodQuartz heating tube with infrared radiation
Screen Specifications5-inch touchscreen
Main Unit DimensionsWidth 537 mm × Depth 390 mm × Height 170 mm
Maximum assembled dimensionsWidth 563 mm × Depth 390 mm × Height 513 mm
Power supplyAC 220 V, (50 ± 1) Hz
Rated Power1.6 kW
Fuse Tube6x30 mm, 10 A
