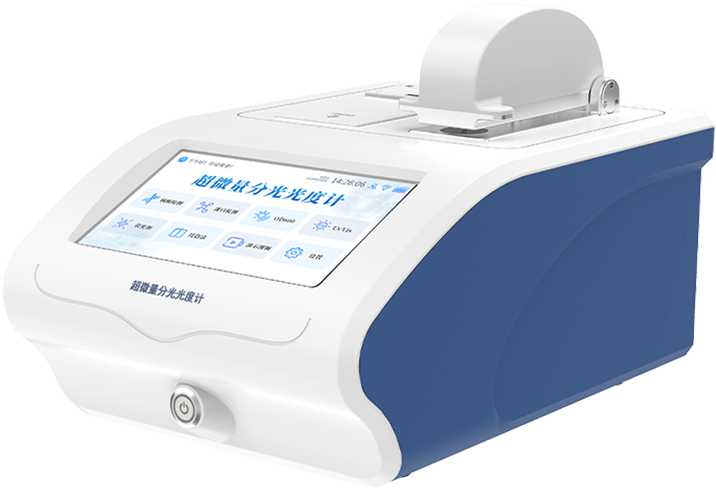

Ultra-Trace Nucleic Acid and Protein Analyzer

The Ultra-Microvolume Nucleic Acid and Protein Analyzer (Ultra-Microvolume Spectrophotometer) is a spectroscopic analyzer specifically designed for modern life science laboratories. Based on UV-visible spectrophotometry, it employs micro-column surface tension detection and automatic three-pathlength switching technology to achieve precise quantitative analysis of nucleic acid and protein samples, offering high sensitivity, a wide dynamic range, excellent stability, and rapid detection. Featuring a color touchscreen interface, it supports cloud-based remote upgrades and detection data management, making it an ideal tool for analyzing microvolume samples in fields such as molecular biology, clinical testing, and research and education.

The core detection principle of this instrument is UV-visible spectrophotometry. Based on the characteristic selective absorption of specific wavelengths of UV or visible light by analytes (such as nucleic acids and proteins) in the sample, the absorbance is directly proportional to the concentration of the substance, following the Lambert-Beer law. By measuring the absorbance of the sample at characteristic wavelengths, quantitative analysis of the sample’s composition is achieved.

The applicable standard is JJF 1836-2020, “Calibration Specification for Microvolumetric Spectrophotometers.”

Applications include the following areas:
Life Sciences and Medical Research: Provides fundamental testing support for nucleic acid concentration measurement, protein quantification, and microbial growth monitoring in university, research institute, and hospital laboratories.
Pharmaceuticals and Biotechnology: Supports the entire drug R&D process, including candidate compound screening, pharmacodynamic and toxicological evaluations, and quality control of biopharmaceuticals.
Expanded Applications Across Multiple Industries: Suitable for food safety, agriculture, and environmental monitoring, providing analytical tools for quality control and safety screening across various industries.

• Android 10 operating system, 7-inch color touchscreen with integrated controls.

• High-stability pulsed xenon lamp (PP value < 0.5%), custom light source flicker algorithm, long lamp life, minimal sample irritation, and protection for easily degradable samples.

• Full wavelength coverage to accommodate diverse sample analysis needs.

• UV-enhanced CMOS line-scan sensor featuring high UV sensitivity, high signal-to-noise ratio, and wide dynamic range.

• Automatic switching between three path lengths (0.04 mm, 0.2 mm, 1.0 mm) ensures high sensitivity for low-concentration samples and eliminates the need for serial dilutions when testing high-concentration samples.

• Liquid column surface tension technology enables immediate analysis with ultra-microvolume samples of 0.5–2 μL, significantly reducing sample loss.

• Ultra-fast response, with results reported in seconds.

• Integrated absorbance and fluorescence analysis. Comes standard with a single-channel OD600 module for measuring microbial culture concentrations; a high-sensitivity fluorescence module (excitation wavelength 470 nm) extends the lower limit of detection.

• User-defined modeling capability for flexible handling of complex samples.

• Built-in thermal printer for instant printing of experimental results; supports USB export of data to Excel.

• The instrument can connect to the cloud for remote software updates; test data can also be uploaded wirelessly via Wi-Fi and managed through a client application.

• 7000 mAh lithium-ion battery provides 8 hours of runtime on a full charge, eliminating the risk of unexpected power outages without a UPS.
