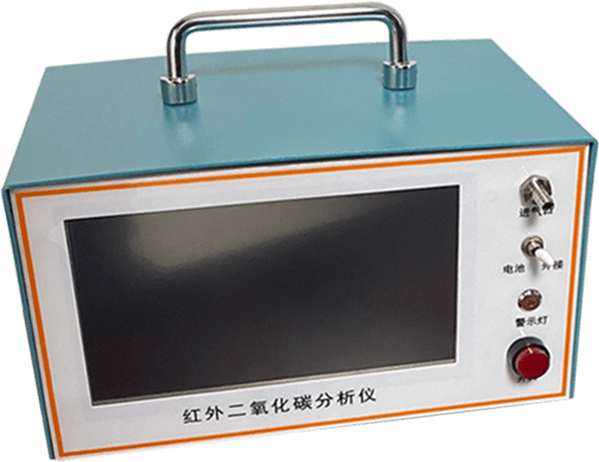

Infrared Carbon Dioxide Analyzer

The infrared CO₂ analyzer is a high-precision instrument developed by our factory for detecting toxic and harmful substances in public spaces. Utilizing non-dispersive infrared technology to measure carbon dioxide concentrations in the air, it offers high measurement accuracy, extended service life, and minimal cross-interference. This instrument is essential for environmental monitoring and occupational health surveillance. It is widely used in environmental protection, environmental monitoring, health supervision, occupational health, disease control, and research institutions.

• Features an Android operating system with a 7-inch touchscreen display for enhanced real-time human-machine interaction.

• Equipped with high-precision infrared sensors for superior measurement accuracy, rapid response, and minimal warm-up time.

• Offers ample storage capacity, capable of retaining over 100,000 data entries.

• Supports both nitrogen zero calibration and catalytic zero calibration methods.

• Built-in thermal printer for immediate data printing upon test completion.

• USB data interface enables data export to USB drives.

• Digital flow sensor with real-time flow rate display.

• Built-in passage switching solenoid valve for automatic zeroing and measurement switching.

• Integrated Wi-Fi for data upload to platforms upon test completion, facilitating data monitoring (optional 4G module available).

• Includes internal constant-temperature heating for operation in outdoor low-temperature environments.

• Features temperature and humidity measurement with built-in compensation algorithms to eliminate the impact of temperature variations on measurement data.

• Displays 0.5-hour averages, 8-hour averages, and daily averages; includes scheduled storage functionality.
