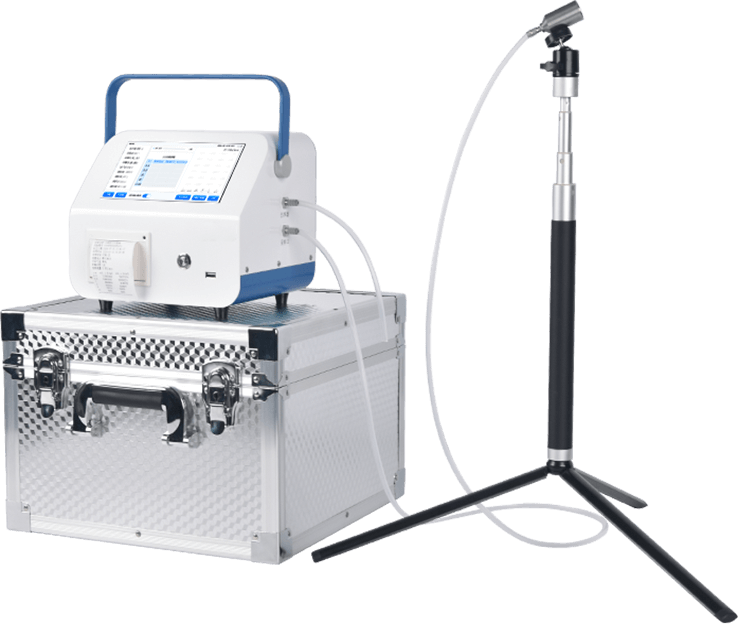

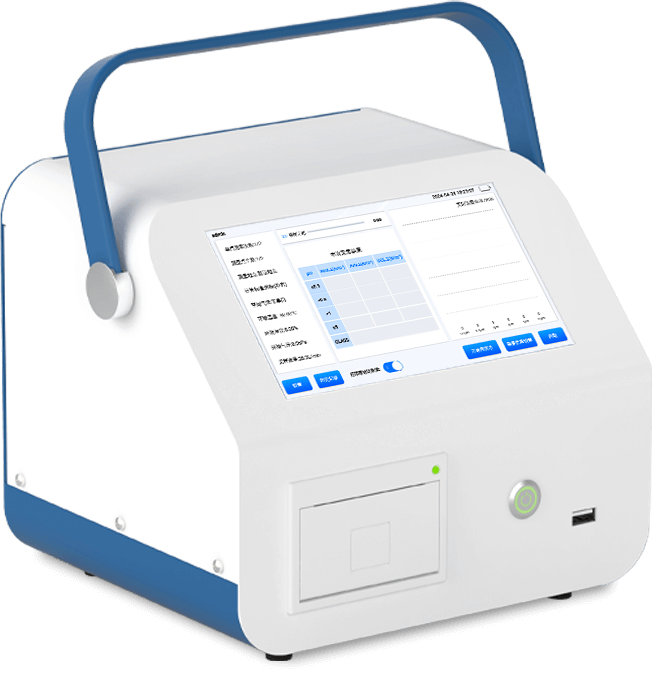

Online Dust Particle Counter

Online Particle Counter, whose confidence level measurement verification standards comply with the conditions specified in the national standard GB/T6167-2007 and calibration specification JJF1190-2008, automatically determines purification levels. A single sampling can simultaneously measure particle counts across six size channels, displaying the particle counts and their variations across all six channels in real time.

The online particle counter meets the requirements of: Electronics industry (semiconductor factories, precision machinery manufacturing, etc.); Food hygiene industry (refined processing of dairy products, vacuum-sealed meat products, seasoning foods, agricultural products, etc.); Filter manufacturers (quality and efficiency testing of filters); Cleanrooms (or clean zones) required for precision manufacturing, precision testing, and bioengineering in fields such as optics and aerospace.

• Equipped with temperature/humidity sensors and environmental barometric pressure sensors.

• Audible and visual alarms: Triggered by particle count thresholds set via alarm parameters.

• Android 7.1 operating system for enhanced user interaction experience.

• The core light scattering sensor significantly eliminates stray light within the chamber, substantially improving signal-to-noise ratio. This ensures more accurate and reliable measurements.

• Calculated at a 95% confidence level (Upper Confidence Limit), count results can be converted to m³ and ft³.

• Automatically determines purification levels based on established classification standards, offering user-friendly operation.

• Supports Wi-Fi and Ethernet transmission, enabling wireless or wired data upload to cloud platforms. Also supports USB flash drive data copying with plug-and-play functionality, no drivers required.

• Equipped with a monitoring platform client, test results can be directly transmitted wirelessly to the cloud for long-term and short-term cleanliness analysis, aiding management.
