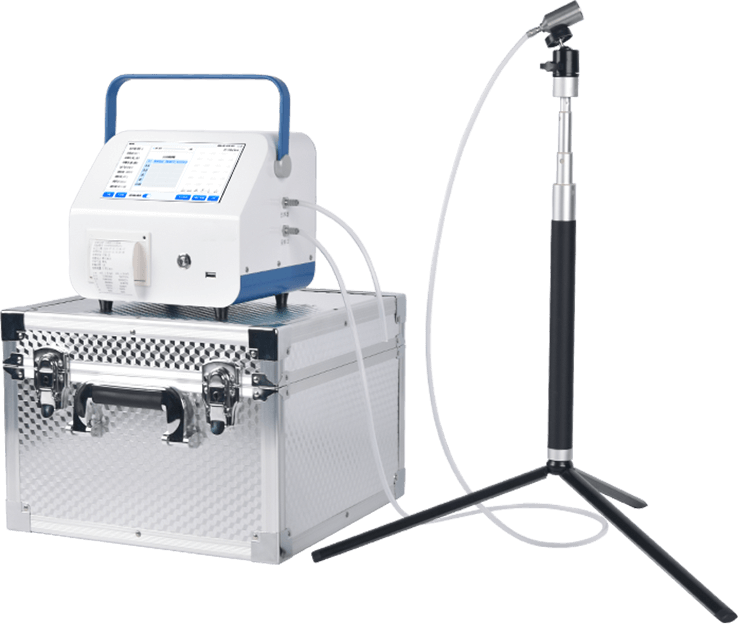

Laser Dust Particle Detector

Laser Particle Counter: Its confidence level measurement and verification standards comply with the conditions specified in the national standard GB/T6167-2007 and calibration specification JJF1190-2008, enabling automatic determination of cleanliness levels. A single sampling session can simultaneously measure particle counts across six size channels, displaying real-time particle counts and trend changes for each channel.

The laser dust particle detector meets the testing requirements for cleanrooms (zones) in precision manufacturing and testing across various industries, including: - Pharmaceutical sector (pharmaceutical plants, drug inspection institutes, hospitals, etc.) - Electronics industry (semiconductor factories, precision machinery production and processing, etc.) - Food hygiene sector (refined processing of dairy products, vacuum-sealed meat products, seasoning foods, agricultural products, etc.) - Filter manufacturers (quality and efficiency inspection of filters, etc.) - Optics and aerospace sectors.

• Android 7.1 operating system for enhanced user interaction experience.

• Built-in temperature/humidity sensor and ambient pressure sensor.

• Core optical scattering sensor significantly eliminates stray light within the chamber, substantially improving signal-to-noise ratio. This enables more accurate and reliable measurements.

• Configured with a monitoring platform, detection results can be wirelessly transmitted directly to the platform for long-term and short-term cleanliness analysis, aiding management.

• Calculates particle counts convertible to m³ and ft³ based on 95% confidence level (UCL).

• Automatically determines purification levels according to classification standards for user convenience.

• Built-in next-generation high-speed thermal printer allows flexible printing of selected particle size channels.

• Supports Wi-Fi transmission for wireless data upload; also supports USB flash drive data copying with plug-and-play functionality.

• Dual-use AC/DC power with built-in rechargeable lithium battery, environmentally friendly and durable, supporting continuous sampling for over 6 hours.

• Convenient and simple telescopic pan-tilt mount for easier installation and sampling operations.
