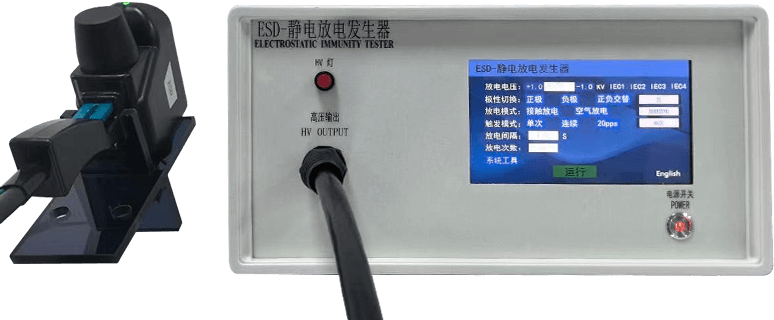

Electrostatic Discharge Generator

The electrostatic discharge generator is a tester that fully meets the performance requirements of IEC 61000-4-2 and GB/T 17626.2 standards.

Its maximum electrostatic discharge voltage reaches 20kV, sufficiently covering the most stringent electrostatic voltage requirements in the standard (Level 4 air gap discharge requires 15kV), while also being applicable to a broader range of applications and future new standards.

Therefore, the ESD-0230C electrostatic discharge generator can be used for electrostatic discharge testing on the vast majority of electrical and electronic equipment, ensuring test comparability and reproducibility.

• The electrostatic discharge generator is a tester that fully complies with IEC 61000-4-2 standards. With a maximum electrostatic discharge voltage of 20kV, it can be used for electrostatic discharge testing on most electrical and electronic equipment, ensuring test comparability and reproducibility.

• Precise Discharge: The air discharge mode complies with standard requirements (voltage held for over 5 seconds), matching European and American products. Discharge performance is minimally affected by air humidity, ensuring excellent repeatability. The industry's most compact discharge gun features minimal radiation interference and facilitates effortless testing.

• Easily replaceable resistor-capacitor kits facilitate testing in three modes: IEC, HBM, and MM. Suitable for ESD testing of various semiconductor devices, electronic circuits, and equipment.

• Comprehensive Functionality: Features IEC voltage settings, automatic trigger mode, voltage ramp scanning, positive/negative polarity cycling, and user-programmable modes.

• This instrument offers stable performance and user-friendly operation, meeting relevant standards including IEC, EN, and GB.

• High Cost-Effectiveness: Key components are fully imported, ensuring high precision and low failure rates. Capable of sustained stable operation at 20kV.

• Advanced Performance: Stable discharge with air discharge voltage maintained for over 5 seconds, fully compliant with standards.

• Compact Design: Lightweight (approx. 4kg) with a compact and aesthetically pleasing structure.
