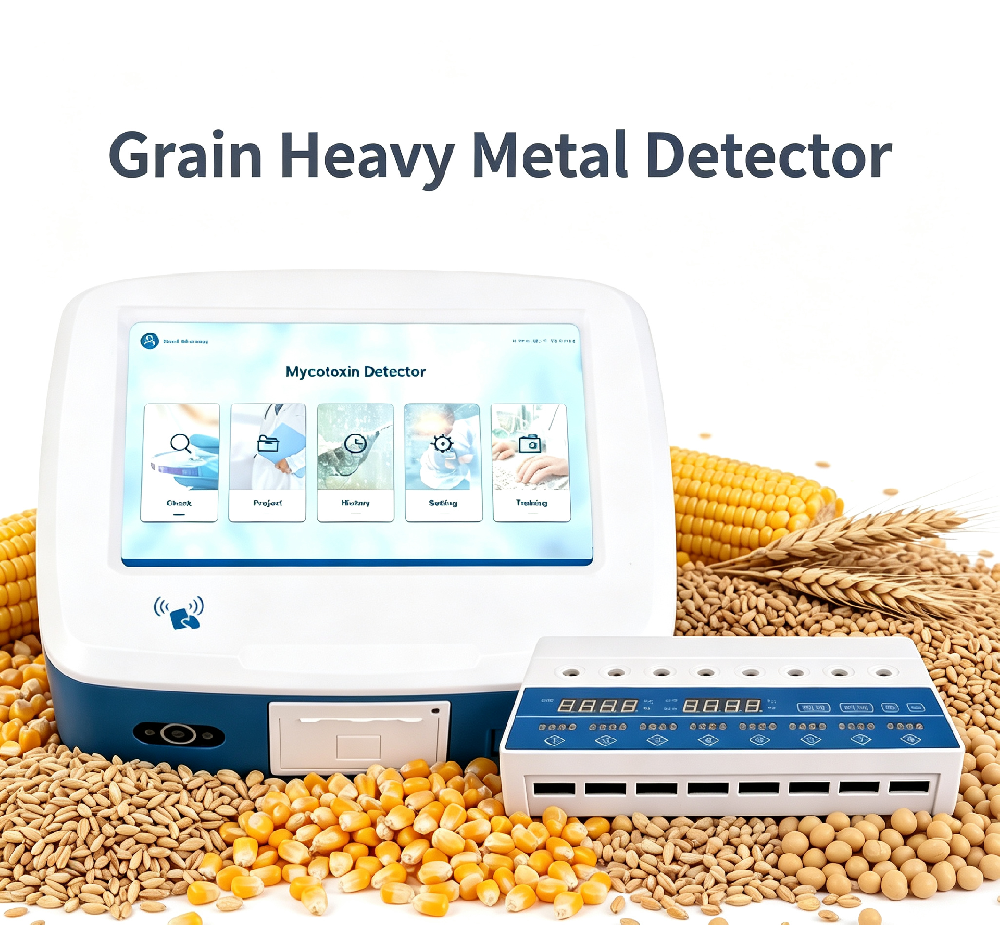

6-Channel Grain Heavy Metal Detector LD-LS2: Fast, Accurate Lead and Cadmium Testing for Global Food Safety

Grain heavy metal contamination, particularly from lead and cadmium, poses a persistent public health risk across the global agricultural and food supply chain. For grain storage facilities, food processing plants, feed manufacturers, third-party testing labs and government regulatory agencies, deploying rapid, reliable on-site testing tools eliminates the delays of sending samples to off-site central laboratories, reduces product waste, and ensures compliance with international food safety standards. The LD-LS2 multi-channel grain heavy metal detector is purpose-built to address these pain points, leveraging advanced fluorescence immunochromatography technology to deliver lab-grade accuracy even for end-users with minimal specialized training.

Why Modern Food and Agricultural Operations Need a Purpose-Built Grain Heavy Metal Detector

Traditional heavy metal testing methods such as atomic absorption spectroscopy often require complex sample pre-treatment, highly trained lab personnel, and long turnaround times that can delay shipment of bulk grain consignments. The LD-LS2 grain heavy metal detector cuts total test cycle time to just 12 minutes, with less than 5 seconds of reading time after the 10-minute integrated incubation period. The device supports testing for a wide range of sample matrices, including all common cereal grains (rice, wheat, corn, barley, sorghum) and their processed products, raw materials and finished feed, edible vegetable oils, milk and dairy products. Unlike generic testing devices that struggle with the complex organic composition of grain samples, this model uses optimized pre-treatment protocols that do not require hazardous chemical digestion steps, keeping operators safe while simplifying workflows.

Core Technical Advantages of the LD-LS2 Grain Heavy Metal Detector

This instrument is engineered with industry-leading specifications to deliver consistent, reliable performance across thousands of test runs. Powered by the Android 7.1 operating system, the device features a 7-inch 1920 x 1200 resolution capacitive touchscreen for intuitive, straightforward operation, with no complex software training required for new users. Its 6 independent detection channels operate without cross-interference, allowing users to run 6 copies of the same test for higher sampling throughput, or test multiple different sample types simultaneously to boost operational efficiency.

All optical components use imported uniform fluorescent microspheres as the core detection medium, delivering exceptional performance metrics: total accuracy error ≤5%, stability fluctuation coefficient (SW) ≤5%, and test repeatability CV value ≤3%, with a detection resolution of 0.001 to capture even trace levels of heavy metal contamination. The integrated incubation and detection chamber maintains a stable 37°C working temperature within 3 minutes of startup, forming a closed testing system that is fully protected from external interference from ambient light or temperature shifts. The factory pre-loaded quantitative standard curves eliminate the need for operators to prepare standard reference materials on site, reducing extra workflow steps and removing the risk of contact with toxic heavy metal reference substances. Users can also access over-the-air (OTA) remote updates for test curves and system software to keep the device aligned with the latest testing protocols.

Rugged, Portable Design for On-Site and Lab Deployment

The LD-LS2 grain heavy metal detector weighs only 2.7kg, with compact host dimensions of 308mm205mm91mm, making it easy to move between different testing locations. Every unit ships with a custom 800×340×540mm precision instrument rolling case built with military-grade shock resistance, IP54 water protection, silent universal wheels and lightweight aerospace aluminum frame, perfect for field sampling visits to farms, grain collection points or remote inspection sites. The device operates reliably across a 0~50°C ambient temperature range and 0~90% non-condensing humidity, with no additional environmental control equipment required for normal use.

Comprehensive Data Management to Support Regulatory Compliance

Storing over 100,000 test results on its 8GB internal memory, the LD-LS2 grain heavy metal detector captures full test metadata including test item name, measured heavy metal concentration, unit, inspected entity, operator ID, test timestamp and detection limit for every run, eliminating gaps in traceability records. The built-in thermal printer outputs full formatted test reports instantly, while multiple data transfer options including WiFi, Bluetooth, 2 USB Type-A ports, 1 USB Type-B port, LAN wired Ethernet, and optional RFID card reader and external barcode scanner let operators sync test data to central management systems or regulatory reporting platforms seamlessly. The device also supports full built-in quality control workflows: automatic instrument self-inspection, test card validity check, and mandatory detection card insertion verification to prevent invalid test runs and false positive or false negative results. Users can also customize header and footer text for test reports to match their corporate branding or internal documentation requirements.

If you are looking for a high-performance, easy-to-deploy grain heavy metal detector to upgrade your food safety testing workflow, the LD-LS2 model is an ideal choice for operations of all sizes from small grain processing facilities to national regulatory inspection networks. Our technical team can provide customized demonstration and deployment guidance tailored to your specific testing scenarios, contact us for a quote to learn more about how this instrument can improve your heavy metal testing efficiency.

Q1: What types of heavy metals can the LD-LS2 grain heavy metal detector test for?

A: The standard configuration of the LD-LS2 is calibrated for rapid quantitative testing of lead and cadmium, the two most commonly regulated heavy metal contaminants in grain and feed products. The platform also supports extended test project management functions to add additional test parameters as your regulatory requirements evolve.

Q2: Does the instrument support multi-language operation for international teams?

A: Yes, the LD-LS2 grain heavy metal detector comes with pre-installed Chinese and English language options, and the interface can be further customized to support additional language packs to match the needs of your local operating teams.

Q3: Can test data from this device be uploaded directly to government food safety supervision platforms?

A: The LD-LS2 is equipped with multiple wired and wireless data transmission interfaces to support seamless data aggregation and transmission to external systems. Our technical team can work with you to develop customized data docking protocols to meet the specific interface requirements of your local regulatory reporting platform.
