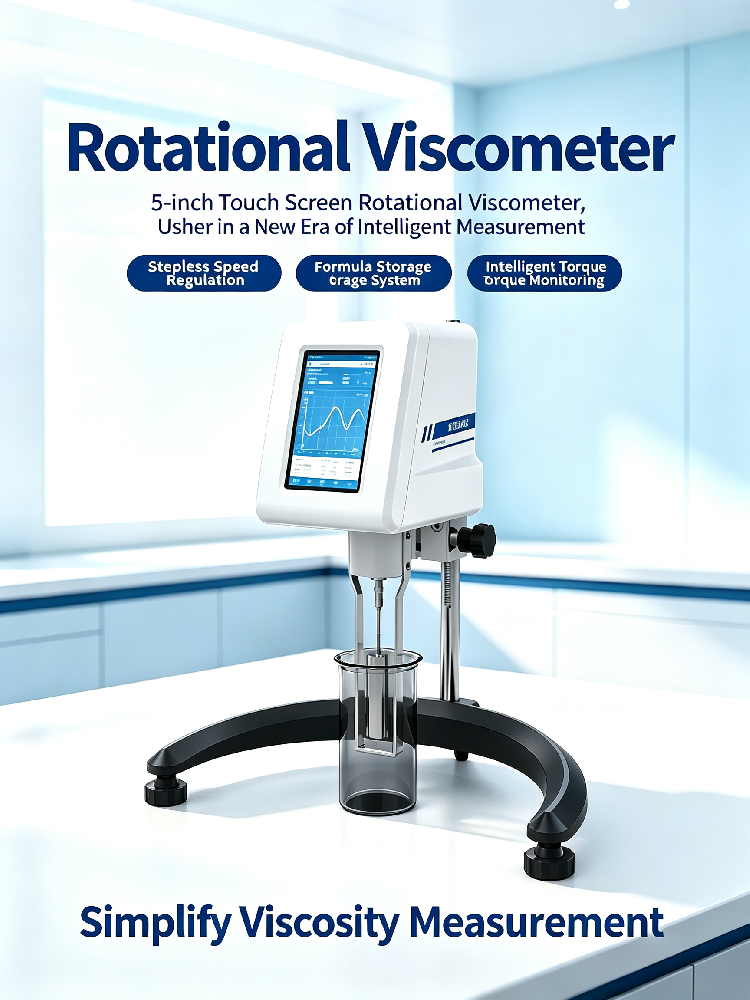

LD-GND1 Rotational Viscometer: High-Precision Viscosity Testing for Industrial Labs & Production Lines

For B2B procurement teams running quality control, R&D, and in-line process verification across manufacturing and research sectors, consistent, accurate viscosity data is non-negotiable for product performance and regulatory compliance. The LD-GND1 rotational viscometer, our latest benchtop precision lab instrument, is engineered to eliminate common pain points of traditional viscosity testing: inconsistent results, limited data traceability, and inflexible operation for non-Newtonian fluid analysis.

Designed for global industrial users, this rotational viscometer measures fluid viscosity by quantifying the drag force applied to a precision rotating spindle submerged in the test sample, delivering reliable, traceable data for every use case. Below we break down its core features, compliance credentials, and real-world value for your operations.

Key Performance & Technical Specifications of LD-GND1 Rotational Viscometer

Built to meet the rigorous demands of daily lab use, the LD-GND1 rotational viscometer packs industry-leading functionality into a compact, portable form factor. Its 5-inch high-definition color touchscreen provides intuitive one-tap operation, eliminating the complex manual calibration steps common on older models. Its testing range covers 1 mPa.s to 100,000 mPa.s, with a measurement accuracy of ±5% under leveled constant temperature conditions, and exceptional repeat accuracy of ±2% to ensure consistent results across repeated tests.

The unit comes standard with 1# to 4# spindles, with an optional 0# spindle available for ultra-low viscosity sample testing. It requires only 250ml of sample volume for standard testing, with infinitely variable speed adjustment ranging from 0.1rpm to 200rpm to adapt to different fluid properties. The built-in temperature sensor covers a testing range of 1°C to 99.9°C, with a 0 to 99 hour programmable timing function for long-duration dynamic viscosity change monitoring.

For data management, the LD-GND1 rotational viscometer supports 256 pre-validated test recipe storage, and 1024 sets of raw test data storage. It is fitted with dedicated ports for power input, temperature accessories, and USB data transfer, allowing users to export all test data directly as editable Excel files via U disk. The full instrument weighs 8.5kg in total, with a 35cm vertical travel range for the lifting stand to support easy sample placement and removal.

Core Advantages That Streamline Your Viscosity Testing Workflow

Unlike generic rotational viscometers on the market, the LD-GND1 is built with user-centric features that drastically reduce lab workload and eliminate human error. Its signature infinitely variable speed system lets users adjust rotation speed at 0.1rpm increments, delivering far more granular rheology data for non-Newtonian fluid analysis than fixed-speed alternatives.

The pre-stored recipe function lets lab teams archive all validated standard test protocols, so new operators can pull up a pre-set test program in one tap without reconfiguring parameters, ensuring full consistency across different shifts and team members. The integrated torque monitoring function automatically identifies the most suitable spindle and rotation speed for your sample, and sends clear on-screen prompts for adjustment, while the built-in torque protection system cuts off operation automatically when the system hits over-range limits to avoid equipment damage.

Other practical features include low-noise mechanical transmission for quiet lab operation, password protection to restrict unauthorized access to test data, and compatibility with external printers for instant on-site test report printing. The unit also supports connection to external constant temperature circulators to maintain stable sample temperature throughout the full testing process, further improving result stability and accuracy.

Full Compliance With Global Industry Testing Standards

All performance of the LD-GND1 rotational viscometer is verified against both domestic Chinese and international standard testing frameworks, to ensure your test results are accepted for regulatory audits and cross-border product certification. It fully meets the requirements of GB/T 10247-2008 Viscosity Measurement Methods, JJG 1002-2005 Rotational Viscometer Verification Regulation, and GB/T 15357-2014 for surfactant and detergent viscosity testing.

For global users, the LD-GND1 rotational viscometer is fully compliant with ASTM D2196-2018 for rheology testing of non-Newtonian materials, ASTM D2983 series standards for low-temperature viscosity testing of transmission fluids, hydraulic oils and lubricants, and ISO 2555:2018 for apparent viscosity testing of liquid resins with single-cylinder rotational viscometers. The full production and calibration process follows ISO/IEC 17025:2017 lab management system requirements, to deliver traceable, auditable data for all your testing needs.

Wide Industry Application Scenarios

The LD-GND1 rotational viscometer is a versatile workhorse that fits seamlessly into operations across multiple high-demand sectors. For the chemical industry, it delivers accurate viscosity data for coatings, inks, adhesives, and various chemical solutions, ensuring consistent product batch performance. For food and beverage manufacturers, it supports viscosity testing of sauces, honey, dairy products, and beverage concentrates, to guarantee uniform texture and sensory experience for end consumers.

For pharmaceutical production teams, the LD-GND1 rotational viscometer tests the viscosity of liquid drugs, topical gels, and pharmaceutical emulsions, to ensure proper flow properties for filling, packaging, and clinical use. For the petroleum sector, it delivers reliable data for lubricants, fuel oils, and asphalt products, meeting strict low-temperature viscosity testing requirements for automotive and construction applications. It is also a ideal choice for university and research institute labs, supporting advanced material rheology research and new product development projects.

If you are sourcing a reliable, fully compliant rotational viscometer for your lab or production quality control line, the LD-GND1 model is optimized to deliver long-term stable performance with minimal maintenance. Our technical team can provide customized demo and test solution support tailored to your specific sample types, contact us for a quote to learn more about how this unit can upgrade your viscosity testing workflow.

Frequently Asked Questions

Q: What types of samples can the LD-GND1 rotational viscometer test?A: The LD-GND1 rotational viscometer supports viscosity testing for almost all Newtonian and non-Newtonian liquid samples with viscosity within the 1 mPa.s to 100,000 mPa.s range, including paints, inks, food pastes, pharmaceutical gels, lubricants, adhesives, resins, and more. The optional 0# spindle further expands its testing capability for ultra-low viscosity fluids.

Q: Does this rotational viscometer support data export for lab reporting?A: Yes, the LD-GND1 rotational viscometer is equipped with a built-in USB port, that lets users export all stored test data directly to a U disk in editable Excel format. You can also connect an optional external printer to print test reports on site immediately after testing, to meet strict lab data traceability requirements.

Q: Can the LD-GND1 work with external temperature control accessories?A: Absolutely. The unit comes with a dedicated temperature interface, that supports connection to external constant temperature circulators or water baths. Combined with its built-in real-time temperature monitoring function, it can maintain precise constant temperature conditions for samples throughout the full testing process, to deliver highly stable and repeatable test results.
