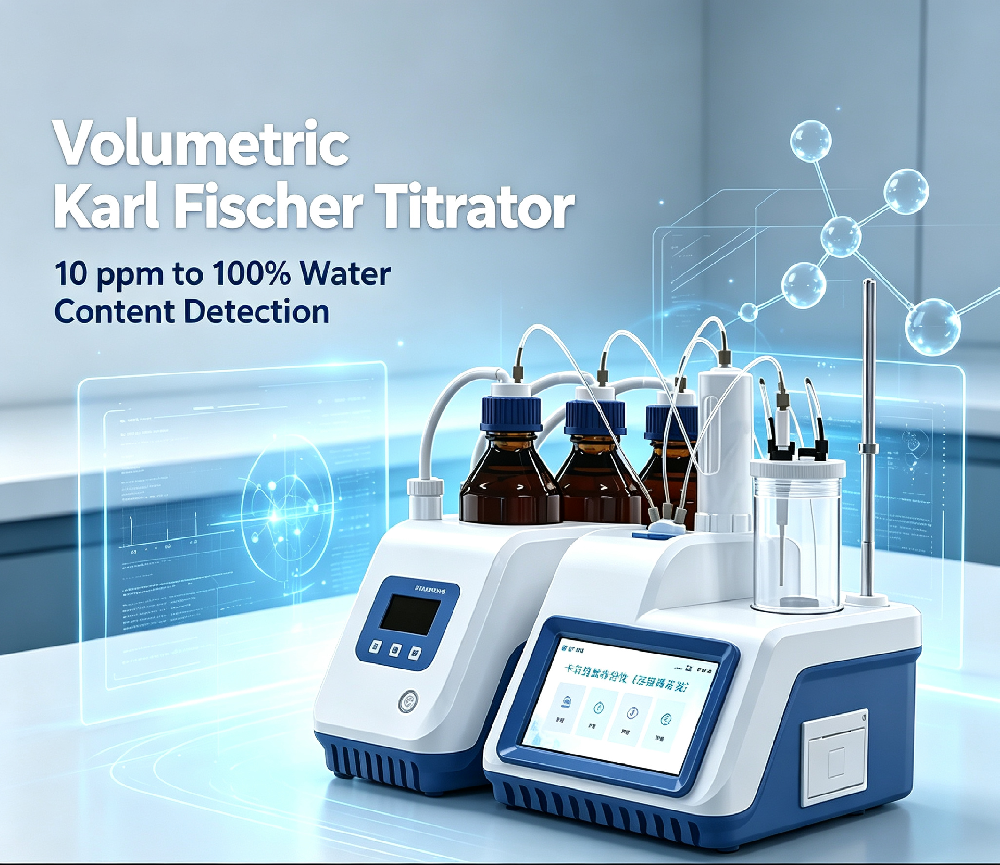

Karl Fischer Moisture Analyzer: High-Precision Volumetric Water Content Testing for Industrial Quality Control

For B2B procurement teams in quality control, R&D, and manufacturing sectors, selecting a reliable water content testing instrument is critical to ensuring product consistency, meeting regulatory requirements, and reducing production risks. Our volumetric Karl Fischer Moisture Analyzer, built on the classic stoichiometric Karl Fischer reaction principle, is engineered to deliver exceptional accuracy and efficiency for both routine lab testing and high-throughput industrial analysis.

Core Working Principle and Compliance Standards

This Karl Fischer Moisture Analyzer operates on the well-documented quantitative reaction between iodine, sulfur dioxide, and water, which has been the gold standard for moisture testing for decades. Equipped with a dead-stop titration endpoint detection system, the instrument uses a polarized electrode to track sudden current changes during the reaction, identifying the exact endpoint with zero subjective judgment errors. The system calculates total water content directly based on the volume of consumed Karl Fischer reagent, eliminating complex conversion steps and reducing manual operation errors. Fully calibrated to meet the JJG 1154-2018 national verification specification for volumetric Karl Fischer moisture analyzers, the instrument also adheres to global lab operation standards, making it suitable for both domestic and international lab environments with strict audit requirements.

Key Technical Specifications and Unique Performance Advantages

Designed for maximum flexibility across different testing scenarios, this Karl Fischer Moisture Analyzer supports a wide water measurement range from 10 ppm to 100% H₂O, with a recommended optimal testing range of 0.1% to 100% for consistent, repeatable results. It offers a 1 ppm measurement resolution, with relative standard deviation (RSD) of repeatability lower than 1% to ensure data consistency across hundreds of consecutive tests. The dual precision burette system, which comes standard with 10 mL and 20 mL metering tubes, features a minimum titration volume of 1 μL, with capacity error controlled within ±10 μL for the 10 mL tube and ±20 μL for the 20 mL tube. Users can swap between the two burettes easily based on the water concentration of their samples, covering everything from ultra-trace low-moisture samples to high-water-content bulk materials. The polarized voltage is adjustable between 30/50/100 mV with ±1 mV accuracy, and the polarized current ranges from 0 to 200 μA with 1.0% full scale error, adapting to different reagent formulations and testing preferences. Other performance highlights include the fully sealed titration cell that blocks ambient moisture interference, anti-diffusion design on the titration head to prevent reagent leakage during standby, and PTFE + fluorine rubber material for all wetted parts to resist corrosion from harsh organic solvents. The split design of the main unit and automatic liquid delivery/drainage system allows one-touch operations for liquid suction, discharge, and cleaning, reducing user exposure to hazardous Karl Fischer reagents.

Industry Applications Across High-Demand Sectors

This Karl Fischer Moisture Analyzer is a versatile workhorse for a wide range of B2B use cases. In the petrochemical industry, it is used to test water content in crude oil, refined fuels, lubricants, and polymer raw materials, preventing catalytic deactivation and production safety risks caused by excess moisture. For pharmaceutical manufacturing facilities, it supports moisture testing in active pharmaceutical ingredients (APIs), excipients, and finished dosage forms, meeting strict GMP requirements for drug stability. Food and beverage processing teams use the instrument to control water levels in dry powders, snacks, and liquid beverages, extending shelf life and preventing microbial growth. It also fits the needs of fine chemical labs for testing moisture in solvents, catalysts, and specialty chemical products, ensuring batch-to-batch consistency for end users. The system supports testing for liquid, gas, and soluble solid samples, eliminating the need for multiple separate testing devices for different material forms.

Smart Data Management and User-Centric Design Features

Powered by an ARM Cortex-A7 quad-core processor running a customized Android operating system, the Karl Fischer Moisture Analyzer is fitted with a 7-inch full-color touchscreen for intuitive, lag-free operation. The built-in operation video library allows new lab staff to master testing workflows without extensive external training, and users can freely edit sample metadata including name, ID, test unit, operator information, and client details for full traceability. The device offers 8 optional result units including μg, mg, %, ppm, μg/L, mg/L, μg/g, and mg/g to match different industry reporting conventions. With a built-in thermal printer, users can print full test reports with customizable fields including QR codes, sample IDs, and test dates, and scanned QR codes allow instant access to corresponding test results. The system stores over 200,000 historical test records, which can be searched by multiple filters and exported directly to Excel format via a driver-free USB port. The integrated WiFi module supports cloud data upload, remote data analysis on desktop terminals, and over-the-air firmware updates, eliminating the need to return the instrument to the factory for maintenance and reducing downtime. For labs looking to upgrade their existing moisture testing setup or deploy a fleet of compliant Karl Fischer titrators across multiple facilities, our volumetric Karl Fischer Moisture Analyzer balances high performance, ease of use, and long-term reliability perfectly. If you have specific testing requirements for your industry, contact us for a quote and get tailored technical support from our application specialists.

Frequently Asked Questions

Q1: What types of samples can this Karl Fischer Moisture Analyzer test?

A: This instrument is compatible with liquid, gas, and all soluble solid samples, covering most common testing materials across petrochemical, pharmaceutical, food, and fine chemical sectors. For special insoluble sample types, our technical team can provide customized method guidance to support your testing needs.

Q2: Does this Karl Fischer Moisture Analyzer meet global regulatory requirements for audited labs?

A: Yes, the device fully complies with FDA 21 CFR Part 11 and GLP standards, featuring multi-level permission management, full audit trail logs, and data anti-tampering functions, which meet all common regulatory requirements for quality control labs in regulated industries.

Q3: Can I export test data and generate compliant reports for external audits?

A: Absolutely. The system supports direct export of test data to Excel and PDF formats via USB drive, and you can customize all report fields to match your internal lab documentation rules. All stored data is traceable with full timestamps and operator information for audit purposes.
