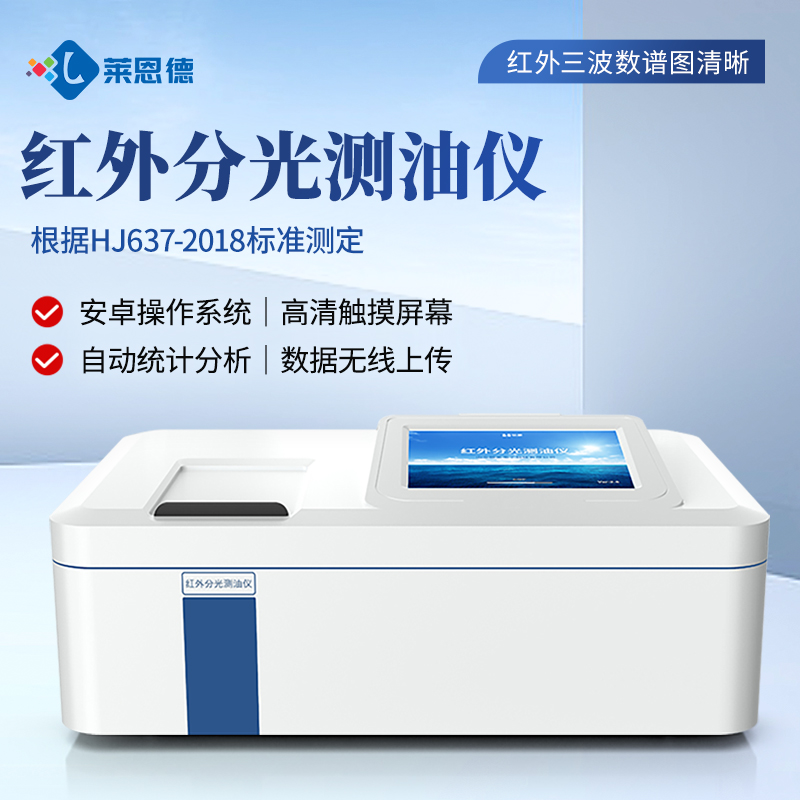

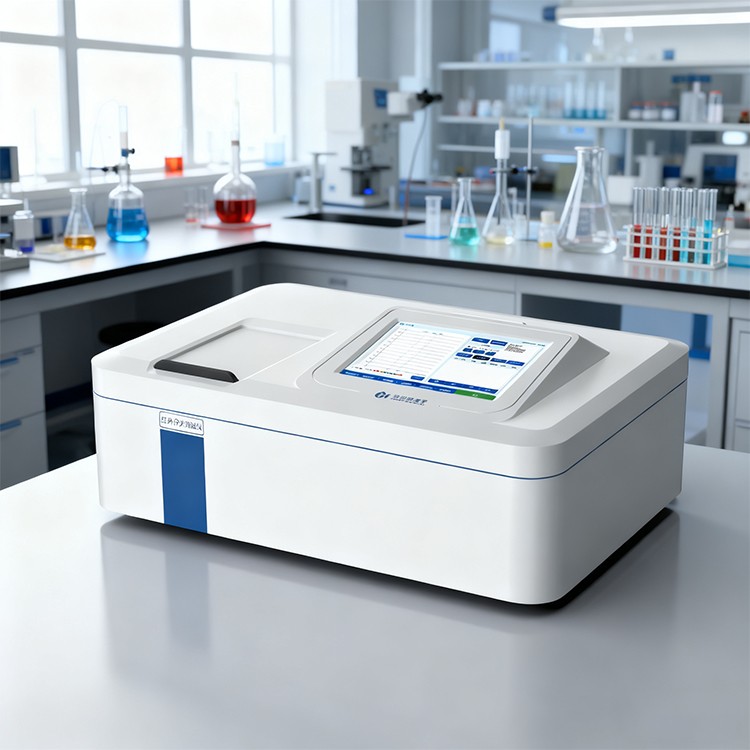

LD-CY1 Infrared Oil Analyzer: High-Precision Oil Content Testing for Water, Soil, and Industrial Emissions

As global regulatory requirements for oil and hydrocarbon contamination monitoring grow stricter across manufacturing, environmental protection, and research sectors, B2B procurement teams are prioritizing analytical instruments that deliver consistent, standard-aligned results without excessive operational complexity. The LD-CY1 infrared oil analyzer, a purpose-built water oil content and total petroleum hydrocarbon tester, is engineered to fill this exact gap for laboratories, industrial facilities, and environmental monitoring organizations worldwide.

Why Standard-Compliant Infrared Oil Content Testing Matters for B2B Operations

Non-compliant oil detection results can lead to heavy regulatory fines, inaccurate process adjustments, and rejected third-party audit reports. Unlike less precise UV or gravimetric testing methods, infrared spectrophotometric oil testing relies on proven molecular absorption measurement at 3 targeted wavenumbers, eliminating interference from non-oil contaminants to deliver verifiable, audit-ready data. The LD-CY1 infrared spectrophotometric oil tester is fully validated against three official Chinese environmental standards: HJ637-2018 for water petroleum and animal/vegetable oil testing, HJ1051-2019 for soil petroleum content detection, and HJ1077-2019 for stationary source exhaust fume and oil mist measurement, making it eligible for use in all official environmental monitoring programs that recognize these protocols.

Core Technical Advantages of the LD-CY1 Infrared Oil Analyzer

Designed for 24/7 continuous use in busy testing labs, the LD-CY1 integrates 17 patented optimizations that set it apart from entry-level competing units. Its core e-modulation infrared light source delivers over 10,000 hours of service life, with no mechanical chopper parts to reduce failure rates and minimize internal heat buildup that could compromise long-term measurement stability. The detachable integrated optical system features a short optical path with high light energy output, boosting signal-to-noise ratio far above industry average levels for ultra-reliable low-concentration sample reading. Equipped with a dedicated 24-bit high-precision AD chip, the unit can accurately capture microvolt-level weak signals to eliminate background noise interference, a critical feature for detecting trace oil content in clean water samples such as drinking water or surface river water.

The LD-CY1 also eliminates common user pain points found on legacy oil testers: it comes with a built-in function to detect extraction solvent purity, preventing invalid test results caused by unqualified tetrachloroethylene that would waste sample preparation time. Real-time automatic zero calibration adjusts both light-on and light-off signal values dynamically, removing the need for frequent manual baseline adjustments during long testing runs.

Verified Technical Parameters for Unmatched Testing Performance

All specifications of the LD-CY1 infrared oil analyzer are third-party validated to guarantee consistent performance for every user: - Instrument detection limit: ≤0.04mg/L, calculated as 3x standard deviation of 11 blank tetrachloroethylene tests - Method detection limit: 0.06mg/L under standard HJ637-2019 testing conditions (500ml sample, 50ml extraction liquid) - Minimum detectable concentration: 0.003mg/L - Full measurement range: 0 to 100% oil content with optional pre-concentration or dilution, basic range of 0.0 to 800mg/L - Resolution: 0.001mg/L - Repeatability RSD: ≤0.6% for 30-80mg/L oil samples tested 11 consecutive times - Measurement accuracy error: ≤2%, linear correlation coefficient r>0.999 - Full spectrum scanning speed: 45 seconds for fast mode, 3 minutes for high-precision mode - Operating conditions: 1°C to 40°C temperature, ≤90% relative humidity, 100-240V universal power supply

Wide Applicable Scenarios Across Global Industrial Sectors

This multi-functional infrared oil tester supports testing for nearly all common sample types required by B2B users, making it a cost-effective single-instrument solution that replaces multiple specialized testers. It is widely deployed across water environment monitoring stations, municipal wastewater treatment plants, tap water utilities, petroleum refineries, university research labs, hydrological survey organizations, metallurgical and steel manufacturing facilities, pharmaceutical production sites, agricultural environment monitoring networks, textile dyeing factories, ocean conservation agencies, pulp and paper mills, and marine shipping operations. It can also be configured to test residual grease on metal part surfaces for precision manufacturing quality control, expanding its use cases far beyond traditional water testing.

Seamless User Experience and Smart Data Management Features

Running on Android 7.1 OS with a built-in 8-inch high-definition touchscreen, the LD-CY1 infrared oil analyzer delivers an intuitive user interface that requires minimal training for new operators. Users can choose between two calibration methods: fixed correction factor calibration, or custom self-built standard curve calibration, to adapt to unique sample matrix conditions in their facility. The system supports full spectrum zoom functionality, allowing users to inspect fine details of low-concentration sample curves for deeper data analysis. It automatically syncs to network time to eliminate timestamp errors on printed test reports, ensuring all output documentation is audit-compliant.

For modern lab digitalization requirements, the unit supports Wi-Fi and Bluetooth wireless data transmission, uploading all test results to a dedicated cloud data management platform for permanent storage, trend analysis, and multi-user access. It also supports plug-and-play U disk data export with no driver installation required, and one-click firmware updates via U disk, eliminating the need for on-site engineer visits for software upgrades.

If you are sourcing a reliable, cost-effective infrared oil analyzer for your testing facility, the LD-CY1 is now available at an affordable factory direct price of 19800 RMB, with full 12-month warranty and free 2-year access to our cloud data management platform. Contact our sales team today to request a free product demo, custom configuration consultation, and localized shipping quote for your region.

Frequently Asked Questions

Q1: What official standards does the LD-CY1 infrared oil analyzer comply with?A1: The LD-CY1 is fully validated against 3 national environmental standards of China: HJ637-2018 for water petroleum and animal/vegetable oil testing, HJ1051-2019 for soil total petroleum hydrocarbon measurement, and HJ1077-2019 for stationary source exhaust oil fume and oil mist detection. Our engineering team can also provide free firmware adjustment support to adapt the unit to your local regional testing protocols upon request.

Q2: Can this infrared oil tester be used for samples other than water?A2: Yes, the LD-CY1 is a multi-functional unit that supports 6 major sample categories: surface water, groundwater, industrial wastewater, soil, stationary source exhaust, and metal part surface residual grease, eliminating the need to purchase multiple separate specialized testing instruments to cover all your oil content monitoring needs.

Q3: What after-sales support is included with the LD-CY1 purchase?A3: Every unit comes with 12-month full warranty covering manufacturing defects, free lifetime firmware updates, 24/7 remote technical support in English, free access to our cloud data management platform for 2 years, and optional on-site calibration and training services for bulk order clients.
