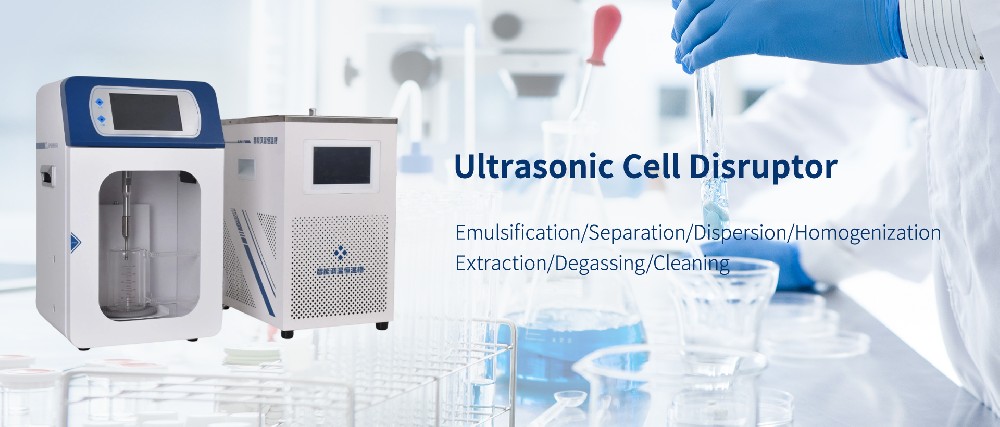

Unlock Precision Cell Disruption with Lande’s Ultrasonic Cell Crusher

Empowering Scientific Efficiency Through Advanced Acoustic Technology

Lanende Intelligent Technology’s Ultrasonic Cell Crusher is engineered to transform complex biological sample preparation into a fast, reproducible, and highly controllable process. By harnessing intense ultrasound-induced cavitation in liquids, this multifunctional instrument breaks cells, tissues, spores, and even inorganic mineral powders while enabling emulsification, dispersion, homogenization, extraction, degassing, cleaning, and accelerated chemical reactions .

How It Works

The crusher converts mains electricity into 20–25 kHz alternating current, driving a piezoelectric transducer made of barium zirconate titanate. This core vibrates longitudinally, transferring mechanical energy through a titanium alloy probe immersed in the sample solution. The resulting cavitation effect creates microscopic bubbles that violently collapse, producing strong shockwaves and micro-jets that disrupt cellular structures at a microscopic scale .

Key Applications

· Biological Research: Disruption of animal/plant tissues, cells, bacteria, and spores for nucleic acid, protein, and metabolite extraction.

· Molecular Biology & Pharmaceutical Development: Homogenization of viscous or hard-to-mix liquids; acceleration of enzymatic and chemical reactions.

· Materials Science: Dispersion and refinement of rare earths and inorganic minerals.

· Sample Preparation for Downstream Analysis: Enables direct use of lysates in PCR, sequencing, proteomics, and chromatography workflows.

⭐ Product Highlights

1. Modular & Vibration-Reduced Design — Separate main unit and transducer minimize mechanical interference .

2. Adjustable Bracket — Height and angle customization fits diverse vessels (test tubes, beakers, reactors) .

3. Smart MCU Digital Control — Supports intermittent/continuous modes with timing precision to 0.1 s .

4. 10.1inch Medical-Grade Touchscreen — High-resolution interface for intuitive operation and real-time monitoring .

5. Aviation-Grade Magnesium-Aluminum Alloy Transducer — Ensures durability and efficient energy transfer .

6. Automatic Parameter Matching — Auto amplitude rod matching and frequency tracking maintain optimal performance .

7. TC4 Titanium Probe — Military-grade strength, corrosion resistance, and high-temperature tolerance .

8. Extensive Memory — Store up to 256 experimental setups for instant recall .

9. Security & Expandability — Password protection, buzzer alarms, and rear expansion ports for foot switches or external devices (e.g., thermostatic circulators, stirrers) .

Technical Specifications

· Display: 10.1″ HD touchscreen

· Ultrasonic Power: 20–900 W adjustable

· Frequency Range: 20–25 kHz

· Crushing Capacity: 0.1–1000 mL (probe-dependent)

· Single Pulse Time: 0.1–99.9 s

· Interval Time: 0–99.9 s (0 = continuous mode)

· Total Run Time: 0.1–999.9 min

· Control Modes: TFT touch control, optional manual override

· Probes: Φ2, Φ3, Φ6, Φ8, Φ10, Φ12, Φ15 mm interchangeable

· Power Supply: 220 V ± 5 %, 50 Hz

· Dimensions: 300 × 240 × 130 mm

· Net Weight: ~1.9 kg

Integrated Solutions Powered by Lande

Lanendecouples the ultrasonic cell crusher with complementary systems such as low-temperature thermostatic baths (0–4 ℃) to prevent degradation of DNA, RNA, and proteins during disruption. This combination forms the backbone of several turnkey solutions:

· Efficient Biological Sample Disruption & Biomolecule Extraction for research labs and biopharmaceutical companies .

· Chromatin Immunoprecipitation (ChIP) Full Process Solution using non-contact ultrasonic shearing to preserve sample activity .

· Cell Disruption & Protein Extraction Comprehensive Protocol for proteomics and protein purification workflows .

These solutions exemplify Lande’s commitment to technology empowering business efficiency, delivering precision, speed, and traceability across the entire experimental pipeline.

 Why Choose Lande’s Ultrasonic Cell Crusher?

· Rapid Results — Reduce sample prep time from hours to minutes compared with traditional methods.

· Versatility — Single device supports a broad spectrum of applications in biology, chemistry, materials, and pharmaceuticals.

· Reliability — Laboratory-grade accuracy with minimal batch-to-batch variation.

· Scalability — Portable yet robust enough for both benchtop research and field sampling.

· Smart Integration — Compatible with IoT-enabled data management platforms for seamless workflow documentation and compliance.

Experience the synergy of acoustic innovation and intelligent control.
Lande’s ultrasonic cell crusher is more than a tool—it’s a gateway to higher reproducibility, safer biomolecule handling, and faster discovery in modern life sciences.

LanendeIntelligent Technology — Where Precision Meets Possibility.
