LD-GT4 Soil Nutrient Detector: High-Precision All-In-One Portable Testing Lab for Agricultural & Environmental Applications

The global agricultural and agri-research sectors are increasingly demanding fast, reliable, on-site testing solutions to eliminate delays from off-site lab turnaround, optimize fertilization strategies, and ensure compliance with environmental safety standards. The LD-GT4 soil nutrient detector is engineered to fill this gap, combining full testing capabilities, portability, and industry-leading performance to serve a wide range of B2B users including agricultural service agencies, fertilizer manufacturers, higher education institutions, research centers, farming cooperatives, large-scale growers and environmental monitoring teams.

Unmatched Portability & All-Inclusive Configuration for Field Deployment

Unlike traditional bulky benchtop testing spectrometers that require dedicated lab space and pre-purchased separate accessories, the LD-GT4 soil nutrient detector integrates all required reagents, tools and the main unit into a rugged, high-strength PVC engineering plastic carrying case that functions as a complete mobile laboratory. Users do not need to source any additional supporting parts before operation, making it fully suitable for flexible field mobile testing even in remote farmland areas. The unit weighs only 5.2kg for the main body, with total packaged weight of 11.5kg for easy transport. It supports dual AC and DC power supply, with a built-in high-capacity rechargeable lithium battery that delivers over 10 hours of continuous operation on a full charge, and is also compatible with vehicle-mounted power supplies for extended field work. It also carries an IP65 seismic rating to withstand rough transport and harsh outdoor operating conditions.

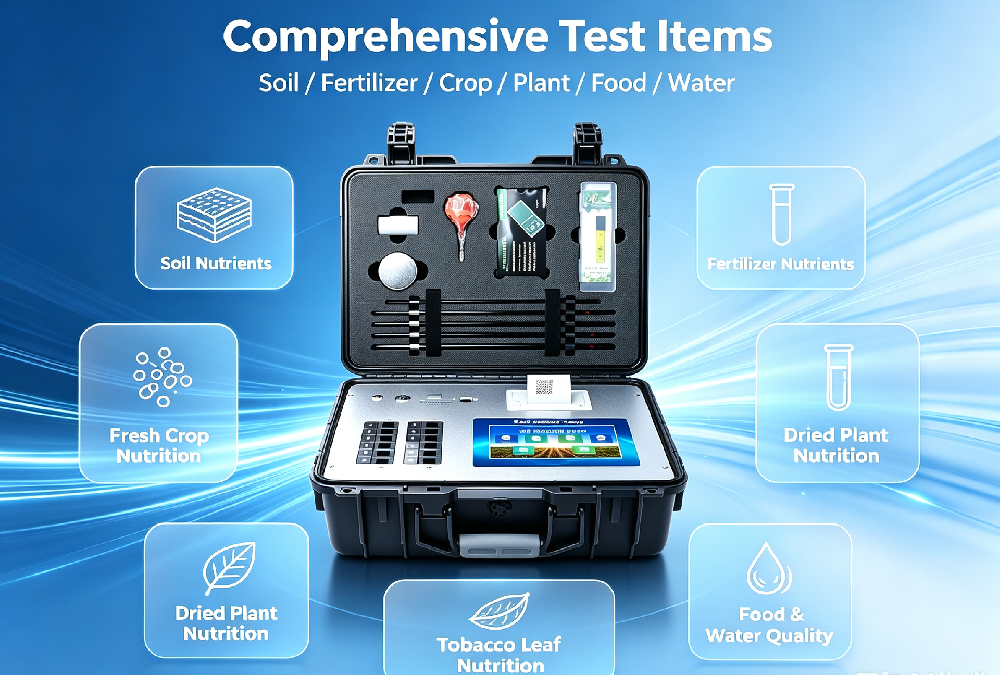

Comprehensive Testing Capabilities Covering All Agricultural & Environmental Use Cases

The LD-GT4 soil nutrient detector supports the widest range of test items in its category, covering 7 major sample categories with fully expandable reagent options beyond standard configurations. For soil samples, it tests all core macronutrients including ammonium nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, organic matter, total organic carbon, C/N ratio, pH, salt content and soil moisture, plus 11 soil trace elements and 9 common heavy metal contaminants. It also supports full nutrient and heavy metal testing for all types of fertilizers including single-element fertilizers, compound fertilizers, organic fertilizers, water-soluble fertilizers and foliar fertilizers, allowing users to quickly verify fertilizer authenticity and quality. Beyond soil and fertilizer, the device delivers accurate testing for fresh crop nutrition, dry plant nutrition, tobacco leaf nutrient profiles, nitrate and heavy metal residues in fruits and vegetables, and key water quality parameters for agricultural irrigation and environmental monitoring.

The LD-GT4 is designed for exceptional testing efficiency, as the industry standard setter for agricultural rapid testing protocols. A single soil sample tested for N, P, K core nutrients takes only 20 minutes including sample pre-processing and reagent preparation. Users can run 3 soil samples in under 40 minutes, and up to 8 soil samples within 1 hour. For fertilizer samples, full NPK testing for one sample takes 50 minutes, and 3 fertilizer samples take no more than 1.5 hours. All finished reagents are ready to use directly out of the package with no manual preparation required, drastically cutting down pre-operation workload for users.

Industry-Leading Performance & Technical Advantages Over Standard Benchmarks

The performance of the LD-GT4 soil nutrient detector far outperforms national standard JJG179-90, with 6 times higher stability than the required standard, and its repeatability reaches the performance level of high-end grating spectrophotometers. The test error for soil NPK is ≤1%, organic matter error ≤2%, trace element relative error ≤5%, fertilizer single item error ≤0.5%, fertilizer NPK combined error ≤1%, and heavy metal relative error ≤5%. Its core patented design features include a precision rotary colorimetric cell (Patent No. ZL 2018 2 1777724.7) and independent patented high-precision filter analysis method (Patent No. ZL 2020 2 1763837.9), paired with 12 independent rotary detection channels that can process 12 samples at one time to maximize throughput. It uses a 4-wavelength professional cold light source (red 680±2nm, blue 420±2nm, green 510±2nm, orange 590±2nm) with zero light drift during long continuous operation and a service life of up to 100,000 hours. Built-in automatic light intensity calibration, constant current and voltage stabilization functions ensure consistent test accuracy, and the device has obtained official calibration certification from the National Institute of Metrology of China.

Smart Cloud Integration & User-Friendly Operation for Enhanced Workflow

Powered by an Android operating system running on ARM Cortex-A7 RK3288 quad-core processor with 1.88Ghz main frequency, the LD-GT4 soil nutrient detector features a 7-inch 1024*600 high-definition true-color touchscreen for intuitive, low-error operation. It is equipped with built-in sample pre-processing operation videos, so new users can follow on-screen guidance to complete testing without spending hours reading thick manuals. The built-in expert fertilization system can calculate customized fertilization recommendations for over 100 types of cash crops and fruit trees based on target yield, and all test reports can be printed via the built-in no-ribbon high-speed thermal printer with complete traceable information including test data, location and QR code.

The device supports WiFi, GPRS and optional 4G data transmission, and is paired with a dedicated smart cloud agriculture platform. Users can upload test data in batches or selectively for long-term data management and visual analysis, and view historical test records at any time via mobile phones logged into the cloud platform. It also comes with USB and Ethernet interfaces, large built-in memory and U-disk data export function, built-in GPS to record geolocation data during field operations, multi-user account management, power failure auto data save, and Chinese-English language switching to meet global export requirements.

For B2B buyers looking for a reliable, high-performance soil nutrient detector that can replace multiple separate testing devices and deliver lab-grade results on-site, the LD-GT4 is the ideal investment to boost operational efficiency, reduce testing turnaround time, and support data-driven agricultural and environmental decision making. Contact our sales team today to discuss your specific testing requirements and get a customized solution, or contact us for a quote.

Frequently Asked Questions

Q1: Can the LD-GT4 soil nutrient detector work stably in remote field locations without access to grid power?A: Yes, the LD-GT4 is designed for full field deployment. It is equipped with a built-in high-capacity rechargeable lithium battery that supports over 10 hours of continuous operation, and is also compatible with 12V vehicle-mounted power supplies for extended work in off-grid areas. It also has a low battery reminder function and auto data save protection to prevent test data loss during unexpected power cuts.

Q2: What types of samples can the LD-GT4 test besides soil nutrient content?A: Beyond full soil nutrient, trace element and heavy metal testing, the LD-GT4 supports comprehensive testing for all fertilizer types, fresh crop nutrition, dry plant nutrition, 20+ tobacco leaf nutrient indicators, nitrate and heavy metal residues in fruits and vegetables, and core water quality parameters for irrigation and environmental monitoring. Users can also purchase additional optional reagents to expand test items to match their specific application needs.

Q3: Is the LD-GT4 soil nutrient detector suitable for users with no prior professional testing experience?A: Absolutely. The LD-GT4 is built for maximum ease of use. It comes with all pre-configured ready-to-use reagents, no manual solution preparation is required. The system has embedded full sample pre-processing and testing operation videos that guide users step by step through the entire workflow, eliminating the need to learn complex operation manuals. The intuitive touchscreen UI and auto-calculation of test results and fertilization recommendations further lower the skill barrier for new operators.
