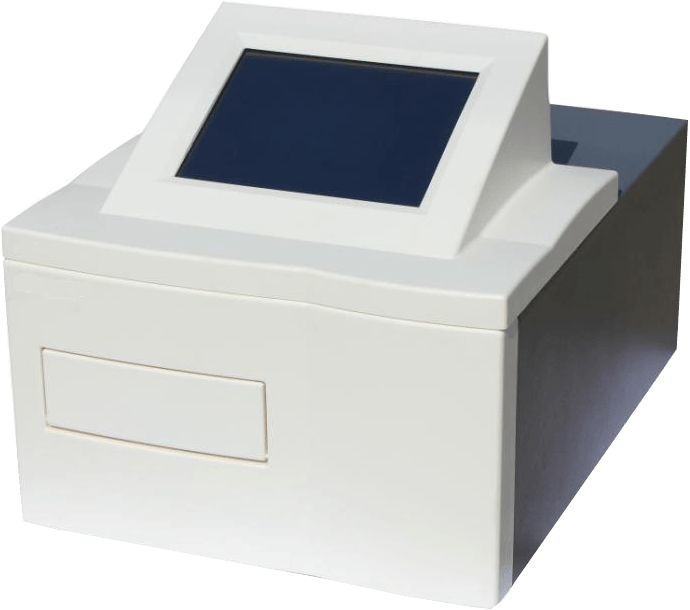

Full-wavelength microplate reader
- Product Number:LD-QM20
- Product Difference:8-inch industrial-grade LCD display, touchscreen operation
+86 19353291814
Online ConsultationProduct Introduction
Full-wavelength microplate reader manufacturer [Lanende Technology] has years of experience in the R&D and production of microplate readers. Our instruments are easy to operate and provide accurate test results. We offer competitive manufacturer pricing. Please feel free to call us for more information!
Product Features
8-inch industrial-grade LCD display with touchscreen operation.
High-performance, low-stray imported gratings with outstanding optical performance.
Fully enclosed optical path design for stability, reliability, and long-term maintenance-free operation.
End-point, kinetic, percentage inhibition, and single/dual/multi-wavelength measurement modes.
Equipped with spectral scanning capability, enabling wavelength scanning of microplate wells.
Product parameters
| Grating | Genuine Imported Grating |
| Grating Range | 190 - 1000 nm |
| Reading Range | 0.000 - 5.000 Abs (at 450 nm) |
| Linearity Range | 0.000 - 3.000 Abs (at 450 nm) |
| Repeatability | CV ≤ 0.2% |
| Stability | ≤±0.002 Abs |
| Absorbance reading error | ≤±0.01 Abs |
| Wavelength reading error | ≤±1 nm |
| Resolution | 0.001 Abs (display, print) |
| Shaking Function | 3 selectable shaking intensities (from low to high), adjustable shaking time from 0 to 250 seconds |
| Computer Software | Comes standard with professional computer-based microplate reader analysis software, featuring comprehensive functions such as test item detection, data processing, curve fitting, threshold determination, quality control evaluation, database management, and customizable report formats |
| Interfaces | COM + USB (Communication, Printing, USB Flash Drive) |
| Display and Operation | 8-inch LCD touchscreen display and operation |
| Product Specifications | Approx. 12 kg |
| Data Export | The instrument supports USB flash drives for direct data export |
| Power Input | Wide-voltage design: AC 100V–240V, 50–60 Hz |
| Dimensions (L x W x H) | 444 mm x 320 mm x (200–400) mm |
| Temperature Control | Ambient temperature +4°C to 50°C, accuracy 37°C ±0.5°C (optional) |
