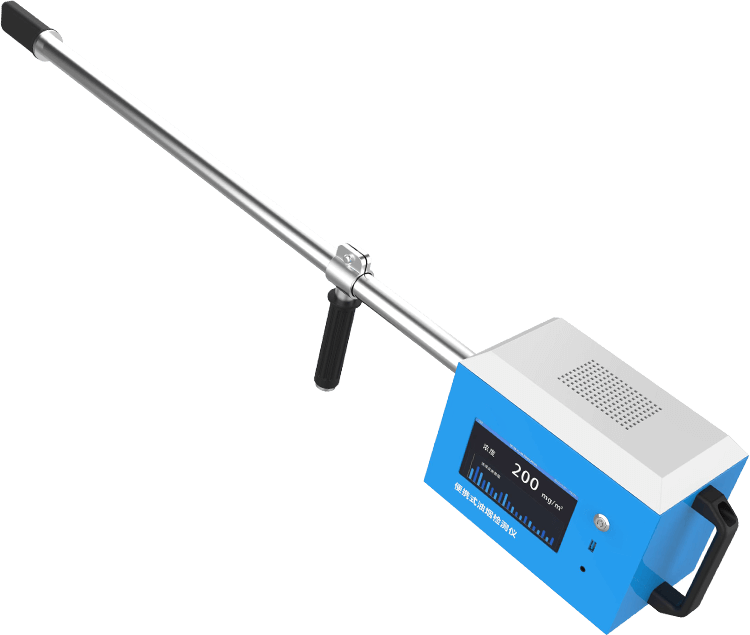

Portable Oil Fume Detector

Portable Oil Fume Detector

  • Product Number:LD-YY30
  • Product Difference:For continuous monitoring of oil fume concentration, non-methane hydrocarbons, and particulate matter

Product Introduction

The portable fume detector continuously monitors fume concentration, non-methane hydrocarbons, and particulate matter. Equipped with a PID photoionization sensor and utilizing pumped sampling technology, it serves as an ideal safety monitoring device for hazardous environments. It enables continuous concentration monitoring and supports alarm control (optional).

Product Features

  • High-performance automatic monitoring with anti-interference technology design.

  • Integrated temperature compensation and long-term automatic calibration technology.

  • High precision and reliable performance, suitable for outdoor and industrial environments.

  • Real-time monitoring of environmental data and equipment operational status.

  • Compact size with modular design for flexible layout.

  • Features a 32-bit high-speed processing core chip.

  • Enables data parameter acquisition.

Product parameters

Power Input12-24V AC
Operating Power5-10W
Sensor TypePID
Monitored ParametersCooking fume concentration, non-methane hydrocarbons, Particulate Matter
Sampling MethodPump-drawn
Monitoring Range

Cooking Fume Concentration: 0-10mg/m³; Non-methane hydrocarbons: 0-10 mg/m³; Particulate matter: 0-10 mg/m³;

Accuracy≤±5% FS
Resolution0.001 mg/m³
Repeatability≤±5% FS
Zero Drift≤±5%FS/6h
Span Drift≤±5%FS/6h
Response TimeT90≤3 s, T90 ≤ 30 s
Communication MethodRS485 Digital Signal (Direct Upload to Environmental Protection Bureau Platform)
Output SignalGPRS (HJ212-2005, HJ212-2017)
Alarm MethodAudible and Visual Alarm
Operating Temperature-30~70°C
Operating Humidity0~90%RH (Non-condensing)
Service LifeSensor (1 year), Instrument (3 years)
