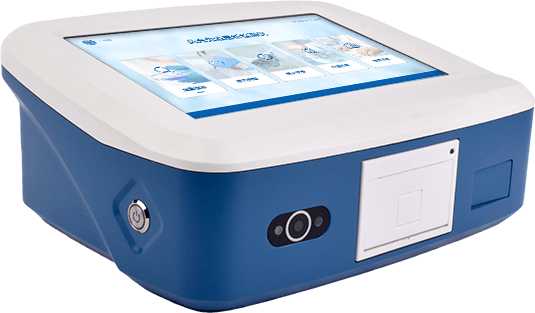

Fluorescent Quantitative Detector for Pesticide Residues

Fluorescent Quantitative Detector for Pesticide Residues

  • Product Number:LD-NY1
  • Product Difference:Single-channel, primarily detects chlorothalonil, chlorothalonil, carbendazim, triazophos, and pyriproxyfen, among others

Product Introduction

The Fluorescent Quantitative Pesticide Residue Detector employs rapid fluorescent quantitative detection principles to primarily test for residues of chlorothalonil, chlorothalonil, carbendazim, triazophos, and pyriproxyfen, among others. This equipment is widely used for pesticide residue testing in vegetables and fruits at vegetable wholesale markets, supermarkets, shopping malls, and departments such as food and drug administration.

Product Features

  • Intelligent Operation: Android smart operating system with a 10.1-inch HD color touchscreen for intuitive and smooth operation and display.

  • Exceptional Stability: Utilizes imported fluorescent microspheres with uniform particle size, ensuring product stability from the source and excellent reproducibility within and between batches. Equipped with an 8-well constant-temperature incubator featuring one well per channel, automatic timing, and audible alerts. Unaffected by external temperature and humidity, enabling broader application scenarios.

  • Built-in quantitative standard curve: The instrument incorporates a standard curve, eliminating the need for external standards or manual curve creation during testing. This reduces costs and prevents operator exposure to vomitoxin, ensuring safety.

  • Low operational requirements: Minimal demands on pre-processing equipment and personnel. Operators require only basic training or can learn via the instrument's instructional videos.

  • Mobile and portable: Lightweight and compact design with a full set of pretreatment equipment and a rolling case, suitable for both field and laboratory testing.

  • Built-in thermal printer: Enables immediate printing of test results, with data upload capability to regulatory platforms.

  • Quality control function: Upper limits can be set for each parameter. Upon test completion, the instrument automatically determines if results exceed standards and saves findings.

  • Cost-saving: Compared to chromatographic testing, consumable costs are minimal, and significant savings in labor and resources substantially reduce testing expenses.

Product parameters

Basic Specifications10.1-inch HD display, 1280×800 resolution, 1GB RAM + 8GB storage, Android 7.1.1 operating system
Detection MethodReflective Photoelectric Detection
Detection PrincipleFluorescent Immunoassay
Adapter Card Case70mm*20mm
Unlock MethodPassword
LanguageChinese/English
Storage Capacity100,000+
Detection ChannelSingle Channel
Detector/Light SourcePhotodiode array, 365nm light source
Detection SpeedSingle detection time < 5 seconds, enabling quantitative fluorescence analysis of samples
Testing MethodAutomatic Scanning
Card Insertion DetectionTesting cannot proceed if the test card is not inserted into the detection channel
Quality Control FunctionBuilt-in quality control functions: device submission testing, device self-check, reagent card self-check
Test CurveVerifies reagent card results to prevent misinterpretation
Project ManagementSupports expansion of test item functionality
Interface SettingsModify header and footer information for flexible display of instrument details
PrinterThermal printer (Thermal paper: 57*30mm)
Data TransmissionWiFi, Bluetooth, USB, RF Card Reader, QR Code Scanner Module
Data ProcessingSupports data aggregation and upload to monitoring platforms via communication ports
Constant-Temperature Incubator8-channel independent control with auto-timing upon insertion; accommodates 1.5ml sample tubes
AccuracyError value ≤ 5%
StabilityCoefficient of Variation (CV) ≤ 5%
RepeatabilityCV (Coefficient of Variation) ≤ 3%
Resolution0.001
InterfacesUSB ports: 2; USB-B port: 1; LAN port: 1; DC Power Port: 5.5/2.1mm
Power SupplyInput: AC 100V-240V/1.3A 50Hz; Output: DC 12V/5A
Operating EnvironmentTemperature: 0~50°C; Humidity: 0~90%
Dimensions & Weight300*235*125mm, 2.2kg
Accessory Case740mm*490mm*310mm precision instrument trolley case, military-grade shockproof/IP54 waterproof, silent swivel casters + aviation-grade aluminum alloy, lightweight design for enhanced portability
